Snow Performance 2E Power-Max Boost Cooler WMI Controller
Snow Performance
2E PowerMax
The latest development from Snow Performance!
Complete system with programmable 52mm cockpit display and optional dual stage technology.
Snow Performance 2E Power Max
Advantages at a glance:
- Complete system with all necessary components for installation in the engine compartment.
- Dual stage technology
Independent control of 2 nozzles
(optional, upgrade #SP10350 required) - Boost pressure-dependent injection control
Ideal for all centrifugal compressors (Procharger, Vortech) and large turbochargers (*) - No boost pressure loss as with conventional intercoolers, combined with outstanding efficiency
- Control unit integrated in 52mm instrument, incl. matching holder.
- 2-color OLED screen, 7 color modes
- Higher boost pressure and/or more aggressive ignition without knocking combustion. - More power up to 25% possible.
- More power and torque with simultaneous reduction of the thermal load on already modified engines, e.g. through chip tuning, LPG/autogas, NOS or boost pressure increase.
- No loss of boost pressure as with conventional intercoolers, combined with outstanding efficiency!
- Additional cooling of the charge air of up to 60°C possible.
- Reduction in specific fuel consumption.
- In combination with methanol, gasoline with a lower octane value can be used (Super instead of SuperPlus).
- Deposit-free combustion chamber and intake tract, without formation of oil carbon.
- Simple installation
Optimum cooling with water injection
Boost Cooler water injection enables an increase in performance of up to 10-25% to be achieved in turbocharged (turbo/G-charger/compressor) engines without overloading the engine thermally. The charge air is cooled by up to 60°C, effectively reducing the thermal load on already tuned vehicles.
Water or water/alcohol (max. 50% methanol or bio-ethanol) is also injected into the hot charge air by means of the patented high-pressure pump once a preset boost pressure is reached. The evaporating mist achieves extremely effective charge air and intercooling, which u.a. prevents uncontrolled combustion ("knocking"). The effect is demonstrably comparable to 116 octane racing gasoline.
The Boost Cooler™ is unsurpassed in atomization! The liquid is swirled inside the Hyper-Sonic™ atomizer nozzle at supersonic speed before being forced through the Venturi™ orifice.
Racing fuel performance
Water or water/alcohol is also injected into the intake air using the patented high-pressure pump. The evaporating mist achieves extremely effective intake air and intercooling, which u.a. prevents uncontrolled combustion ("knocking"). The effect is demonstrably comparable to 116 octane racing petrol.More power with Boost Cooler
With the Boost Cooler, you can achieve a performance increase of around 10-20%, even with already tuned turbo and compressor engines. The optimum cooling compensates for power losses at higher outside temperatures. In addition, deposits in the combustion chamber and intake tract are reduced.
Ideal for all turbo engines
For Roots blowers (Eaton), twin-screw (Whipple, Lysholm) and small, very fast-revving turbochargers (K03, K04), we recommend the Boost Cooler Stage 2 MAF or Stage 3 systems for optimum results.
Stage 2 POWER-MAX Europe Edition
The European version (display and programming in BAR) is available exclusively from Snow Performance Europe and our authorized European sales partners.
Dual Stage Technology (DST)
The Stage 2E-POWER MAX system can also control an additional injector independently of each other. The highly developed Dual Stage injection management thus ensures optimum cooling and performance results in all engine load conditions.
Simple installation
Flexibly adjustable and extremely simple: you simply set the desired start and end values (e.g. 0.5 and 1.4 bar) and the boost cooler is injected variably within the two set boost pressure points. When using the optional Dual Stage technology, you can set an additional nozzle mapping.

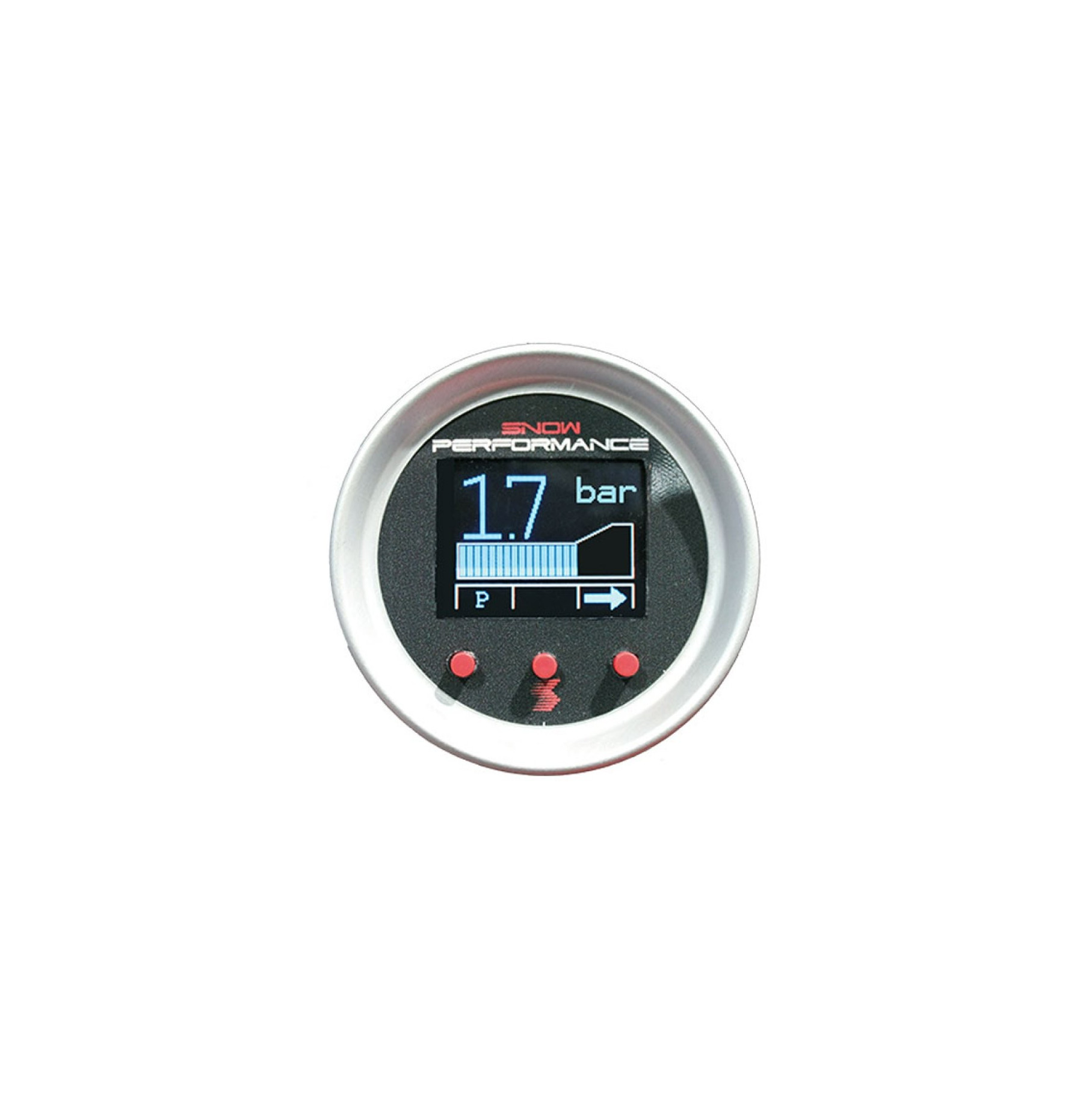

52mm OLED control unit
The Boost Cooler Stage 2 POWER-MAX system is the logical further development of our proven Stage 2 kits. The control unit, integrated in an elegant 52mm OLED round instrument, combines performance features that have been developed to series maturity in cooperation with our sales and technology partners.
The controller settings are made directly on the 52mm instrument. You set the desired start and end value (boost pressure) and injection takes place variably within the set boost pressure points.
Display of: Boost pressure (S2E/EURO-Edition BAR), injection quantity (percentage), low level, activation of 2nd nozzle, 2 error modes
Scope of delivery
- 1 x High pressure EPDM diaphragm pump system, 300 PSI
- 1 x VC50 OLED control unit (since 2017 without separate holder)
- 2 x water-alcohol injection nozzle incl. fine filter
- 1 x 3l storage tank
- 1 x 1/4" pressure line (3 meters)
- 1 x 1/4" nozzle holder, 90° steel
- 1 x Accessories & mounting material
- 1 x German installation instructions
SP10250
