MADE IN AUSTRALIA

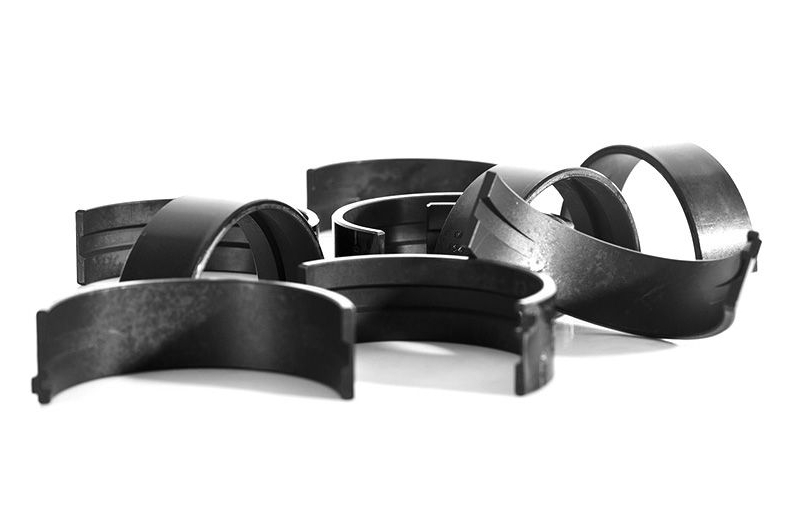

The ACL Race series has been developed for high speed, heavy duty and maximum performance
Hardened steel backing for improved bearing cup support
Elimination of flash plating on the back of the bearings to improve heat transfer through the bearings and maximize adhesion between the bearings and the housing
Enlarged ID chamfers on the bearing edges
In the version:
Standard dimension (STD) H
Main bearing standard dimension:
Crankshaft journal diameter: 53.958 to 53.978 mm
Bearing race diameter: 59.000 to 59.019 mm
Bearing shell width: 18.500 mm (360° lubrication groove)
Bearing shell thickness: 2.501 mm
Suitable for:
VW Golf 4, Passat, Bora, Polo
Audi A3 S3, TT, A4, A6
Seat Ibiza Leon Cupra
Skoda Oktavia
Engine code letter:
AGU / AUM / AUQ / ARZ / APX / AEB / AJH / AJL / AMK / AMU / APH / APP / APY / AQX / ARX / ARY /AVC / AWC / AWV / AWW / AYP / BAM/ BBU / BEK / BFV / BJX / BVP
