VW T5 2.0L TDI CFCA Bi-Turbo Oil Cooler Kit - 19 rows with stainless steel brackets & thermostat

VW T5 2.0L TDI CFCA Bi-Turbo Oil Cooler Kit - 19 rows with stainless steel brackets & thermostat

Non Plus Ultra - Maximum cooling & protection for your engine

Our high performance oil cooler kit for the VW T5 2.0L 180PS CFCA Bi-Turbo TDI ensures highly efficient cooling and a constant oil temperature. With its high-quality stainless steel PTFE lines, fine-mesh 19-row oil cooler and 3D laser-cut stainless steel brackets, this kit offers maximum stability and easy installation.

NOW NEW! Optimized thermostat curve

Our system is equipped with a specially developed thermostat insert that offers a higher opening temperature than conventional models. While standard thermostats often open at 75 °C, this thermostat deliberately focuses on a higher temperature zone. This promotes the efficient degassing of fuel components and ensures more efficient engine operation.

Technical highlights

• High-quality stainless steel PTFE lines from Germany for maximum flexibility
• AN10 connections for a high volume flow
• Fine-mesh 19-row oil cooler for maximum heat dissipation
• Special thermostat for the CFCA Bi-Turbo engine
• Adapter especially for the CFCA engine with original VW oil filter

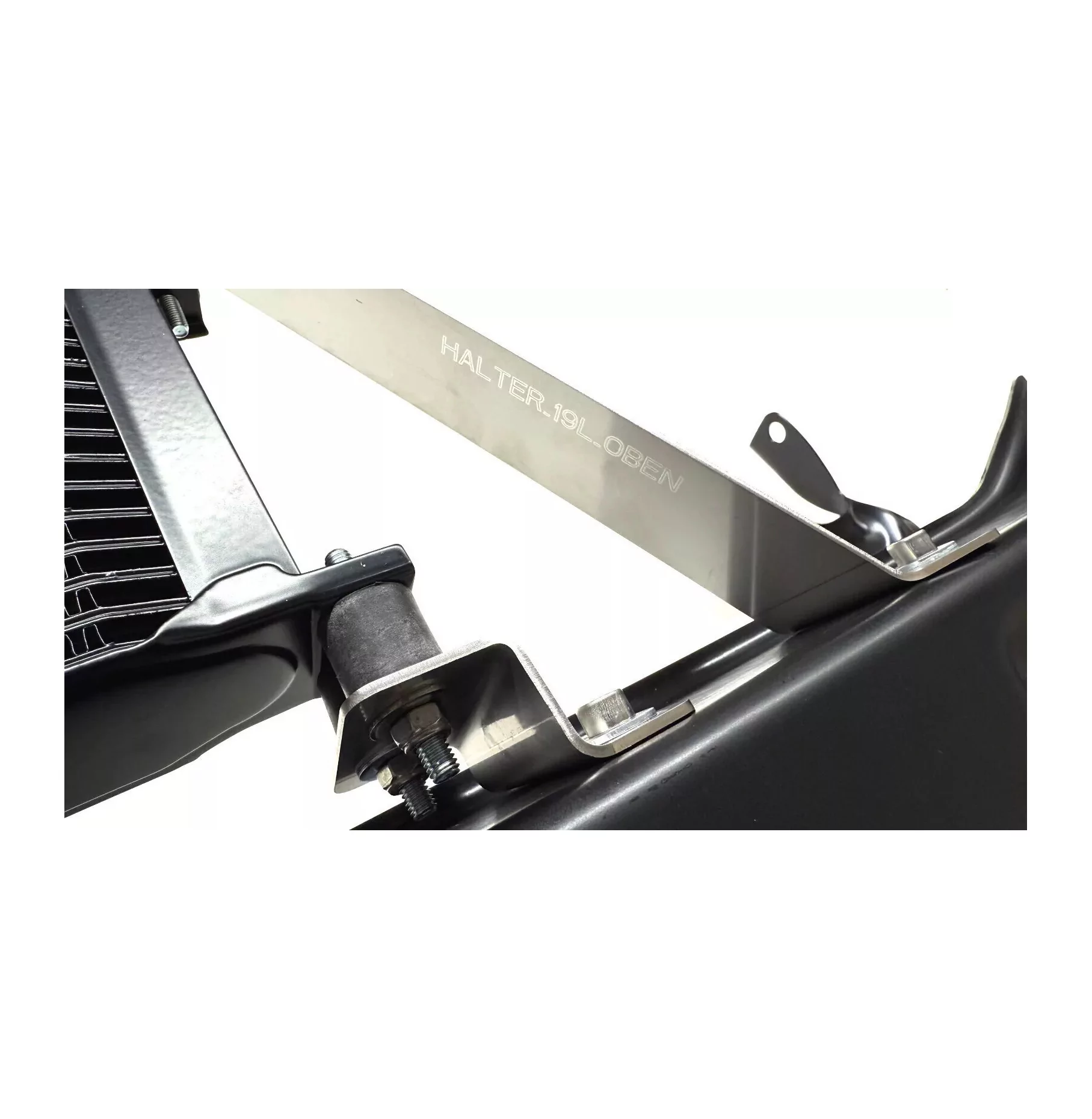

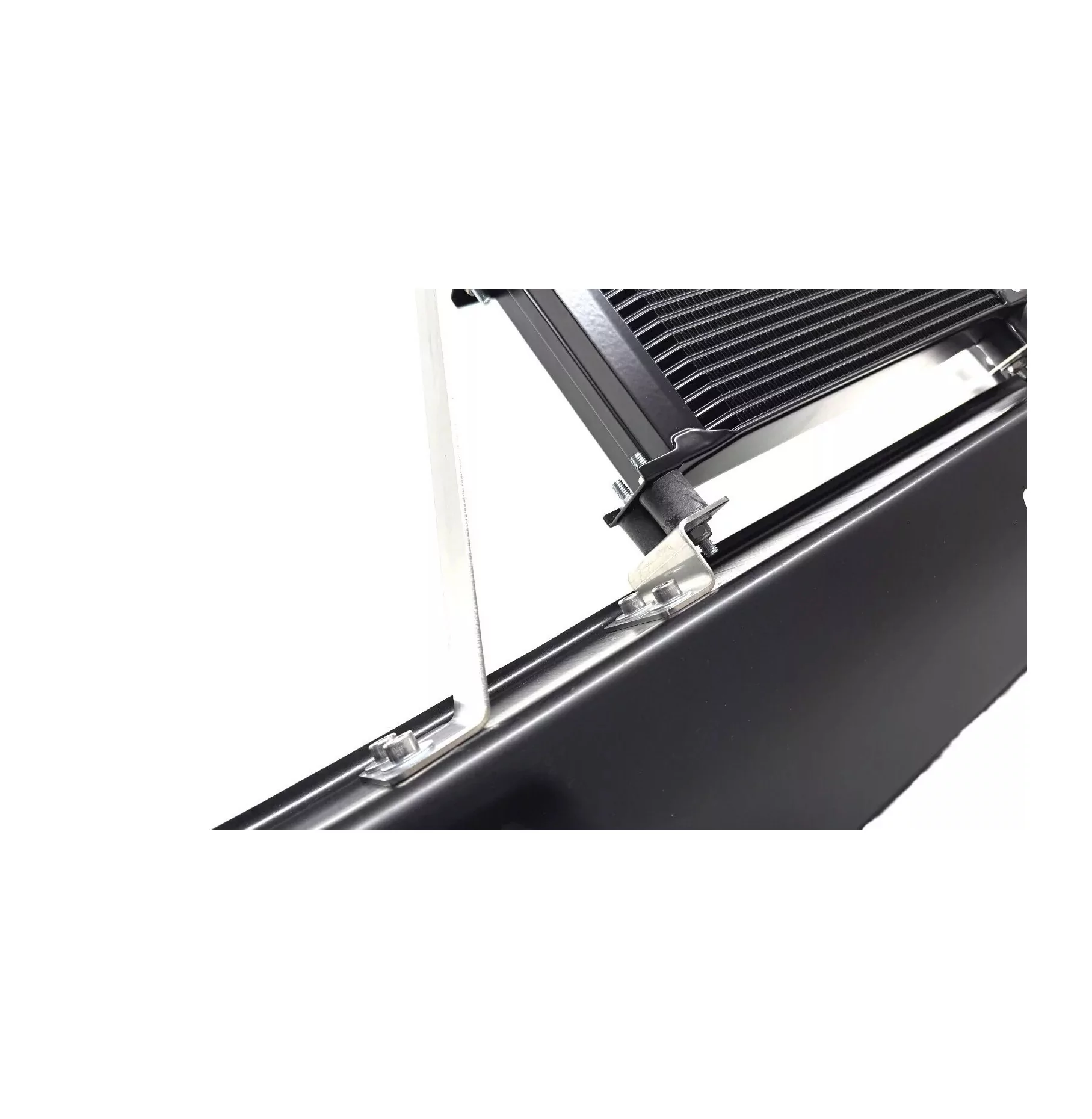

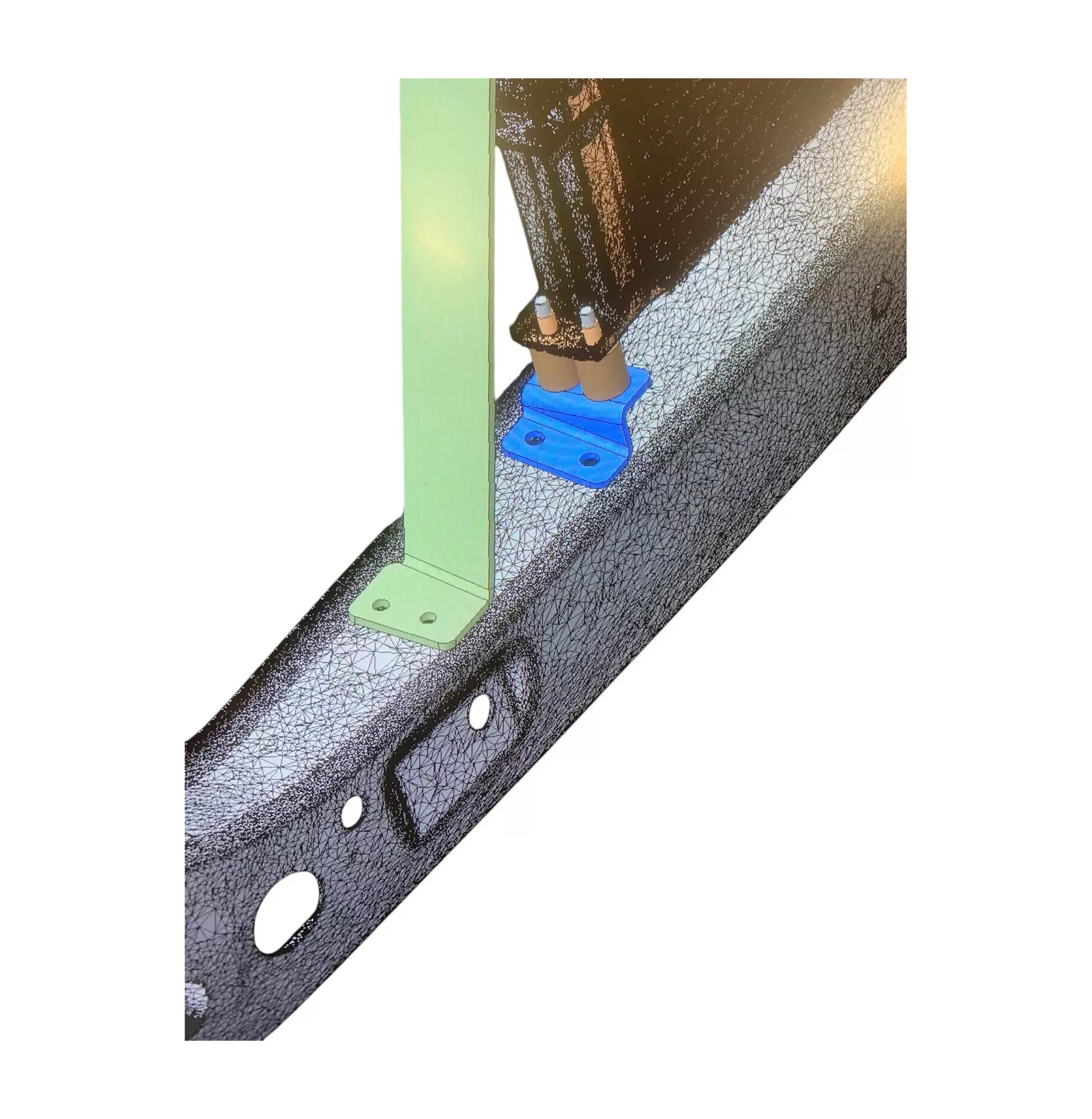

• 3D laser-cut stainless steel brackets for secure & stable mounting
• Burst pressure tested in Germany for maximum safety

Why our oil cooler kit?

A high-performance oil cooler is essential to keep the oil temperature in the optimum range. Overheated oil leads to oil film breakage, which can result in engine damage. Our oil cooler kit reliably prevents this and extends the service life of your engine.

Suitable for the following vehicles

The oil cooler kit is specially developed for:

• VW T5.2 2.0L 180PS CFCA Bi-Turbo TDI

Scope of delivery

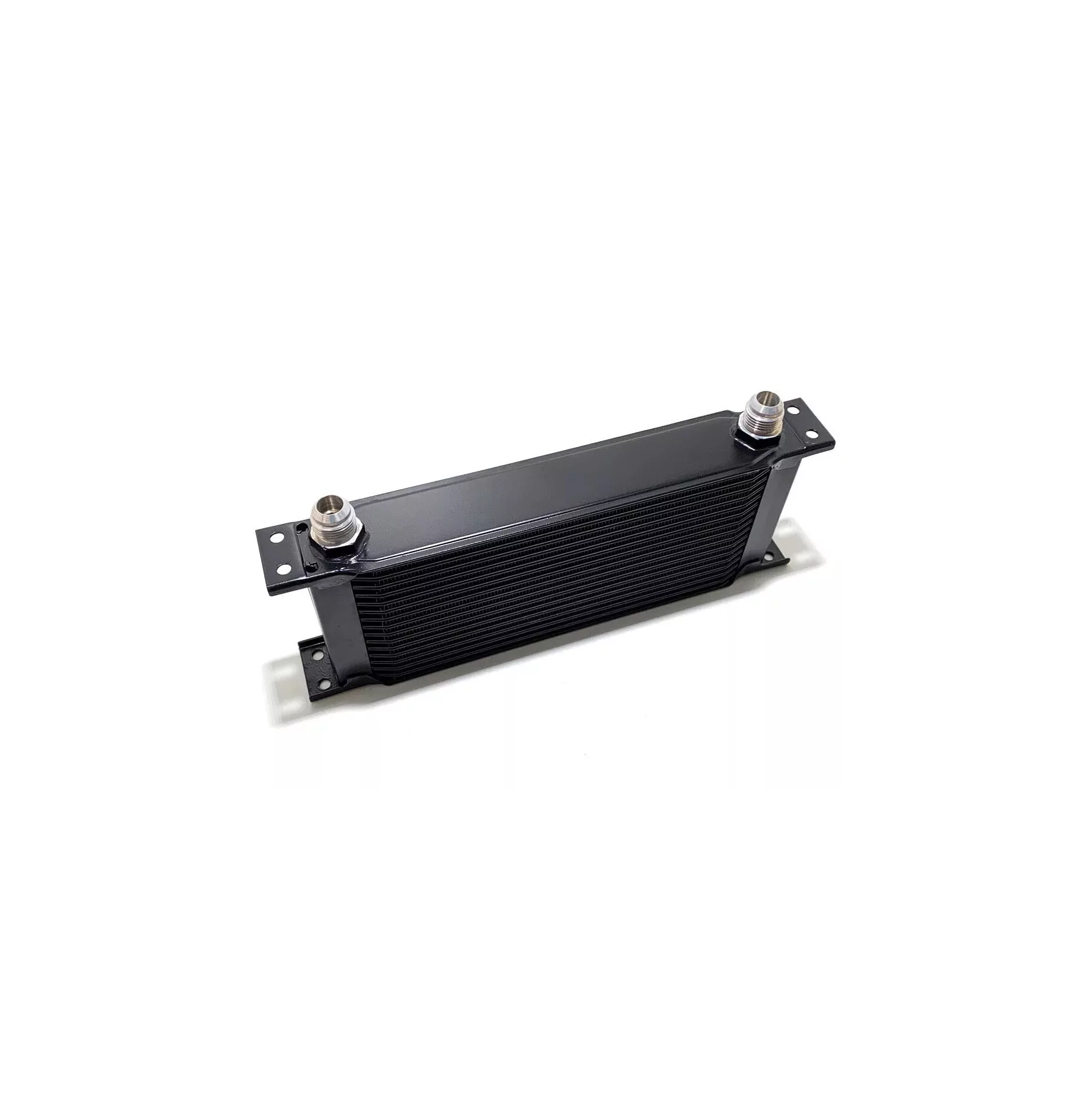

• 1x 19-row oil cooler
• 2x stainless steel PTFE lines with AN10 connections
• 1x special thermostat for the CFCA engine
• 1x adapter for the original VW oil filter
• 1x set of 3D laser-cut stainless steel brackets
• 1x installation material
• 1x Illustrated installation instructions

Notes on installation

• Professional installation required - only to be carried out by qualified specialist companies

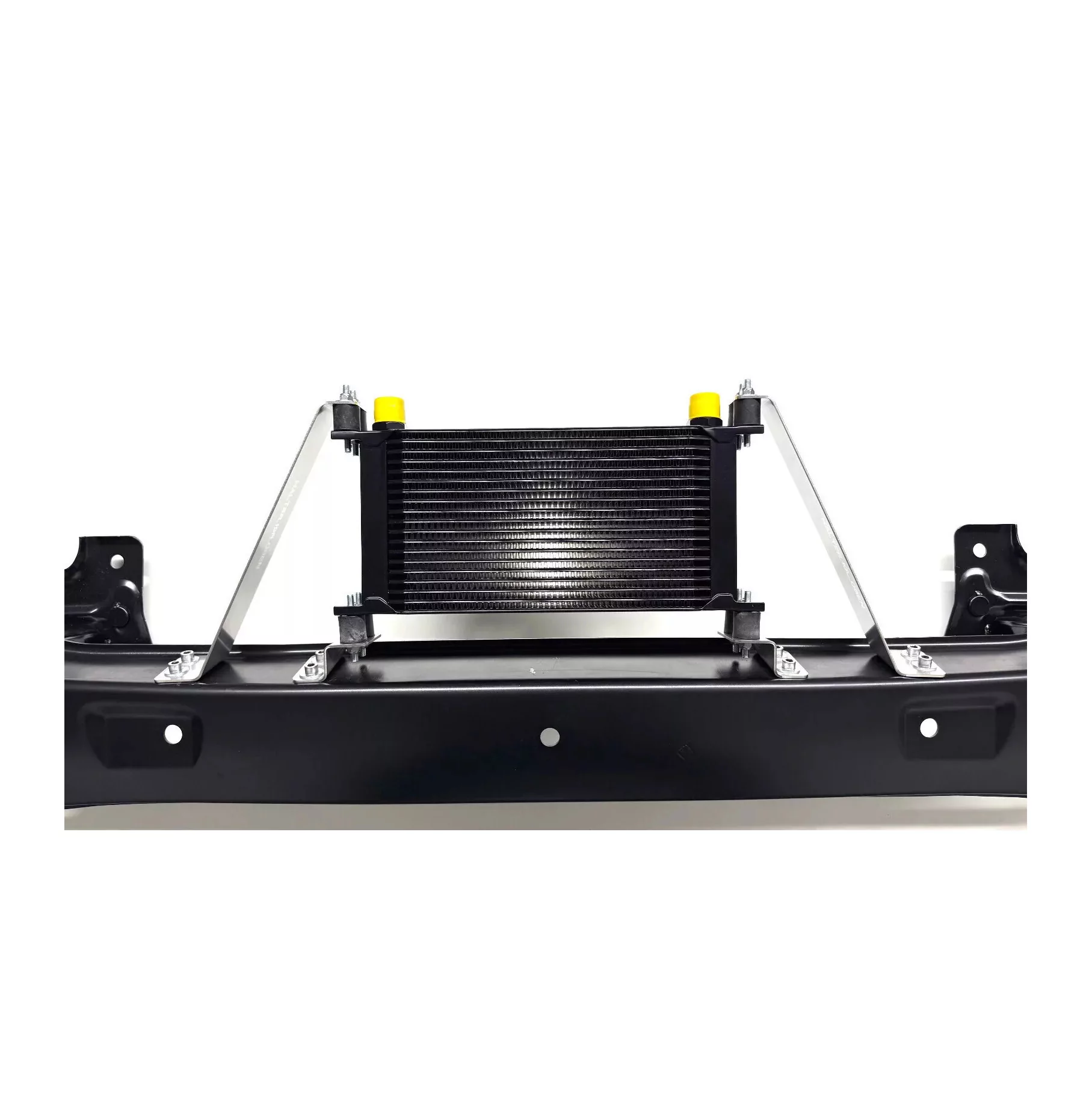

• Brackets required - all 4 retaining brackets of the oil cooler must be fastened

Important notes

Note: This product is not approved for use in road traffic and is intended for motorsport and high-performance applications.

Installation: A cheaper version WITHOUT brackets is also available in our store.
