Garrett G35-900 1.21 A/R / V-band In Out / Turbocharger 880700-5004S

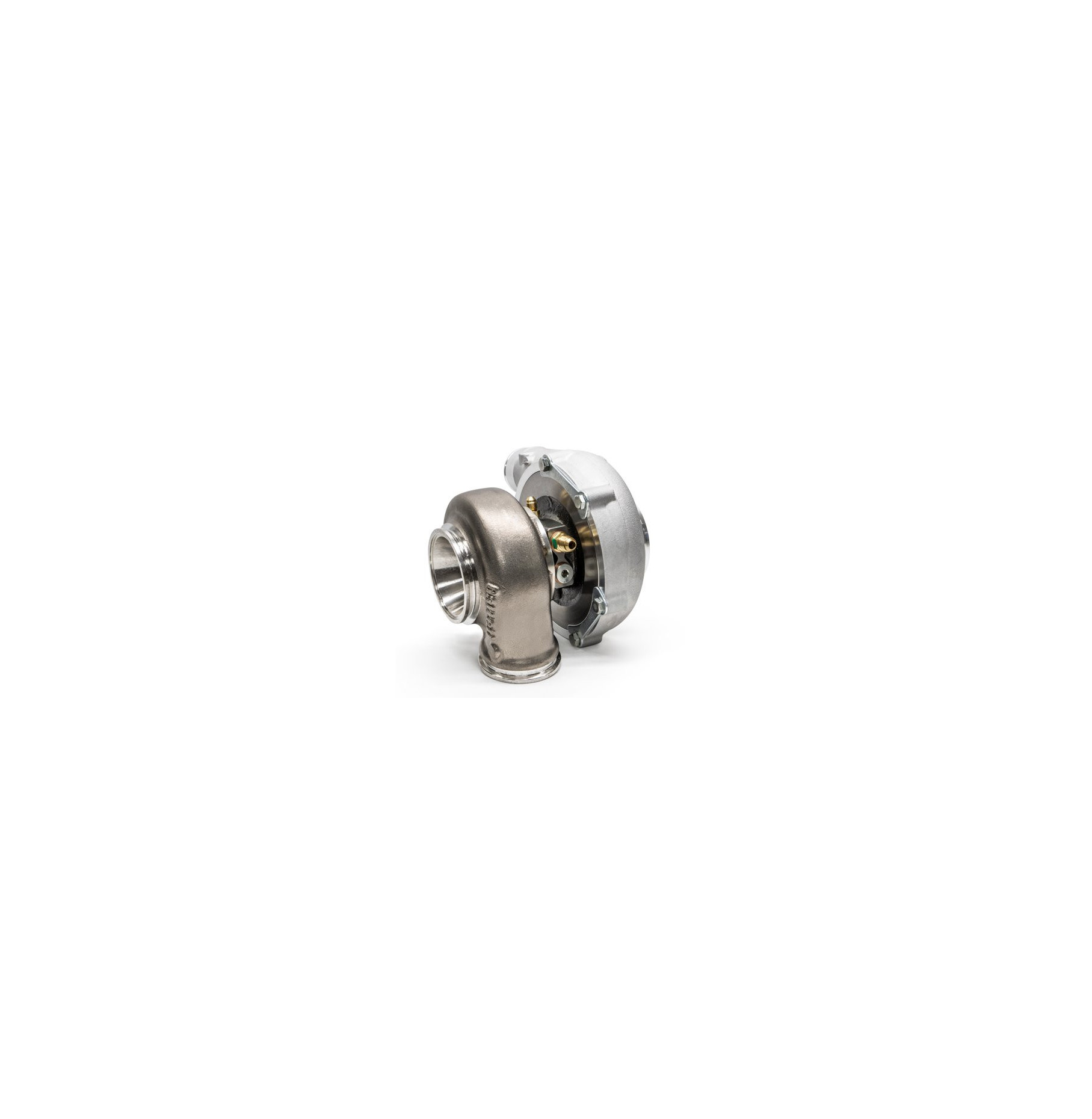

Garrett G35-900 Turbocharger 880700-5004S

Direction of rotation: Standard right
Version: Single scroll / V-band inlet / V-band outlet / 1.21 A/R
Power: 550-900 hp

The G-Series is the latest and most modern generation of Garrett turbochargers

Compressor side:
Compressor: Inlet 62.00mm / Outlet 76.00mm
Trim: 65
A/R: 0.72
Compressor wheel: 9-blade billet

Turbine side:
Turbine: Inlet 68.00mm / Outlet: 62.00mm
Trim: 84
A/R: 1.21

Technical data:

- Direction of rotation: Standard right
- Bearing: Double ceramic ball bearing
- High flow compressor housing with preparation for easy insertion of an optional speed sensor
- Compressor housing inlet: 3 inch diameter
- Compressor housing outlet: 2 inch diameter
- Turbine housing inlet: 3 inch OD-V band
- Turbine housing outlet: 3.55 inch OD-V band

Scope of delivery:
- Oil supply (1 mm) restrictor fitting on -4AN
- Two coolant connections for -6AN
- V-band clamps for the inlet and outlet of the turbine housing
