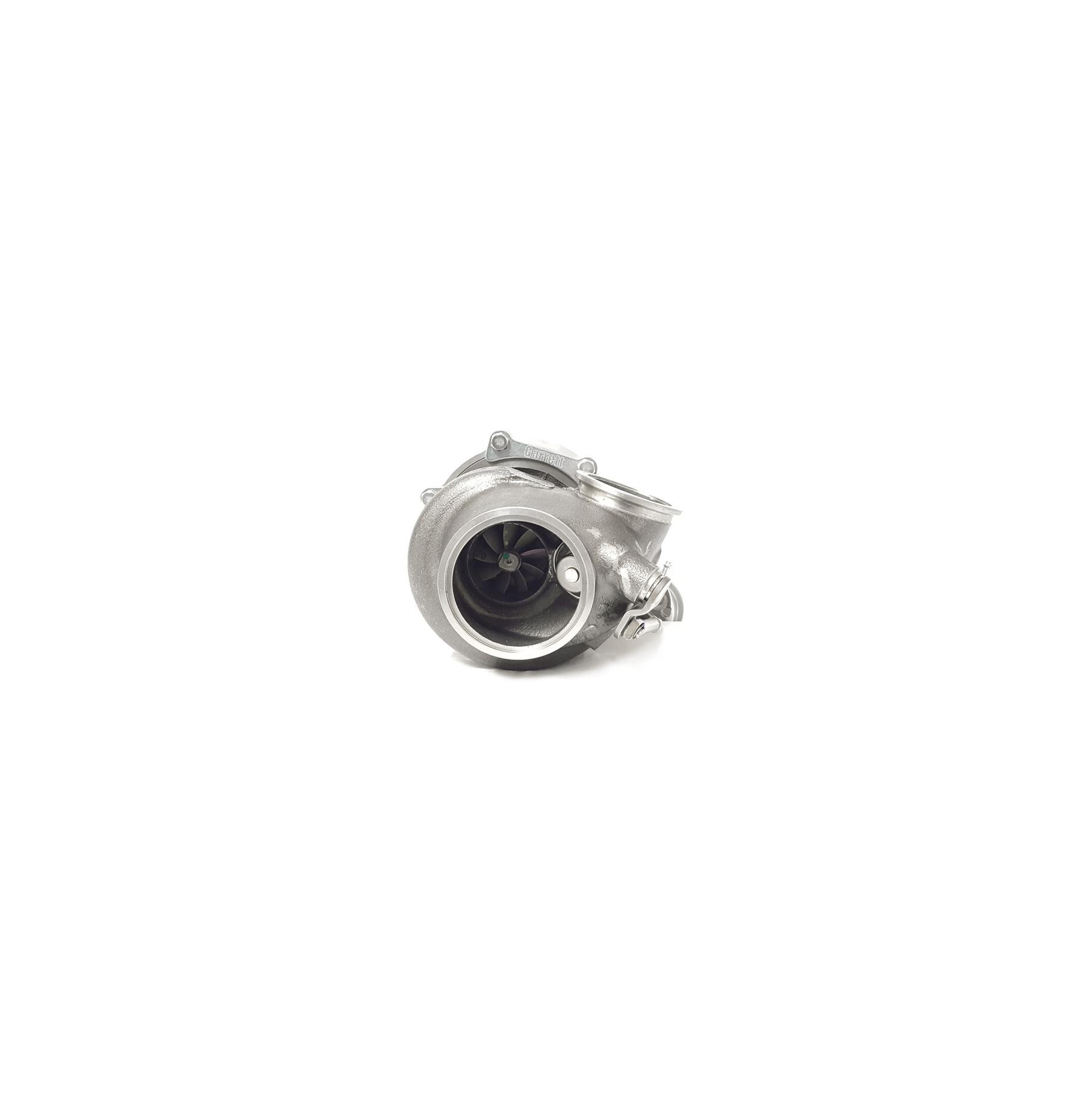

Garrett G25-550 Reverse 0.92 A/R / V-band / Internal wastegate turbocharger 877895-5008S

Garrett G25-550 Turbocharger Internal Wastegate 877895-5008S

Direction of rotation: Reverse Left
Version: Internal Wastegate / Single Scroll / V-Band Inlet / V-Band Outlet / 0,92 A/R
Power: 300-550 hp

The G-Series is the latest and most modern generation of Garrett turbochargers

Compressor side:
Compressor: Inlet 48.00mm / Outlet 60.00mm
Trim: 65
A/R: 0.70
Compressor wheel: 9-blade billet

Turbine side:
Turbine: Inlet 54.00mm / Outlet: 49.00mm
Trim: 84
A/R: 0.92

Technical data:
- Direction of rotation: Reverse left
- Bearing: Double ceramic ball bearing
- High flow compressor housing with preparation for easy insertion of an optional speed sensor
- Compressor housing inlet: 3 inch diameter
- Compressor housing outlet: 2 inch diameter
- Turbine housing inlet: 3 inch OD-V band
- Turbine housing outlet: 3.55 inch OD-V band

Scope of delivery:
- Oil supply (1 mm) restrictor fitting on -4AN
- Two coolant connections for -6AN
- V-band clamps for the inlet and outlet of the turbine housing
