Meggatron 450 LPH fuel pump - high-performance delivery for naturally aspirated and turbocharged engines
The Meggatron Racing fuel pump has been specially developed for high-performance applications and delivers a constant flow rate of 450 LPH.
This versatile pump is suitable for naturally aspirated and turbocharged engines and can be used both externally and intank.
Its compatibility with various fuels, including gasoline (102 RON), E85 bioethanol and C16 racing fuel, makes it ideal for motorsport applications and tuned vehicles.
Product advantages
- High flow rate: 450 LPH at freewheeling (13.8V), up to 380 LPH at 3 bar
- Wide fuel compatibility: Works with gasoline, E85 and racing fuels
- Flexible design: Can be used as an intank or external pump in the popular 044 style
- Powerful applications: Suitable for engine outputs of up to 1200 hp when two pumps are used in parallel
Technical data
- External dimensions: Diameter 60 mm
- Housing material: Black coated steel, die-cast zinc end caps
- Input: M18x1.5 (female), output: M12x1.5 (male)
- PRV activation: 10 bar
- Impeller design: Vane pump with ceramic end plate
Electrical data
- Connection: 6mm positive, 5mm negative bolt
- Voltage: 10V - 18V
- Current consumption at 40 psi: 9.73 A without non-return valve (13.5 V)
- Fuse: Recommended 25 A, maximum 30 A

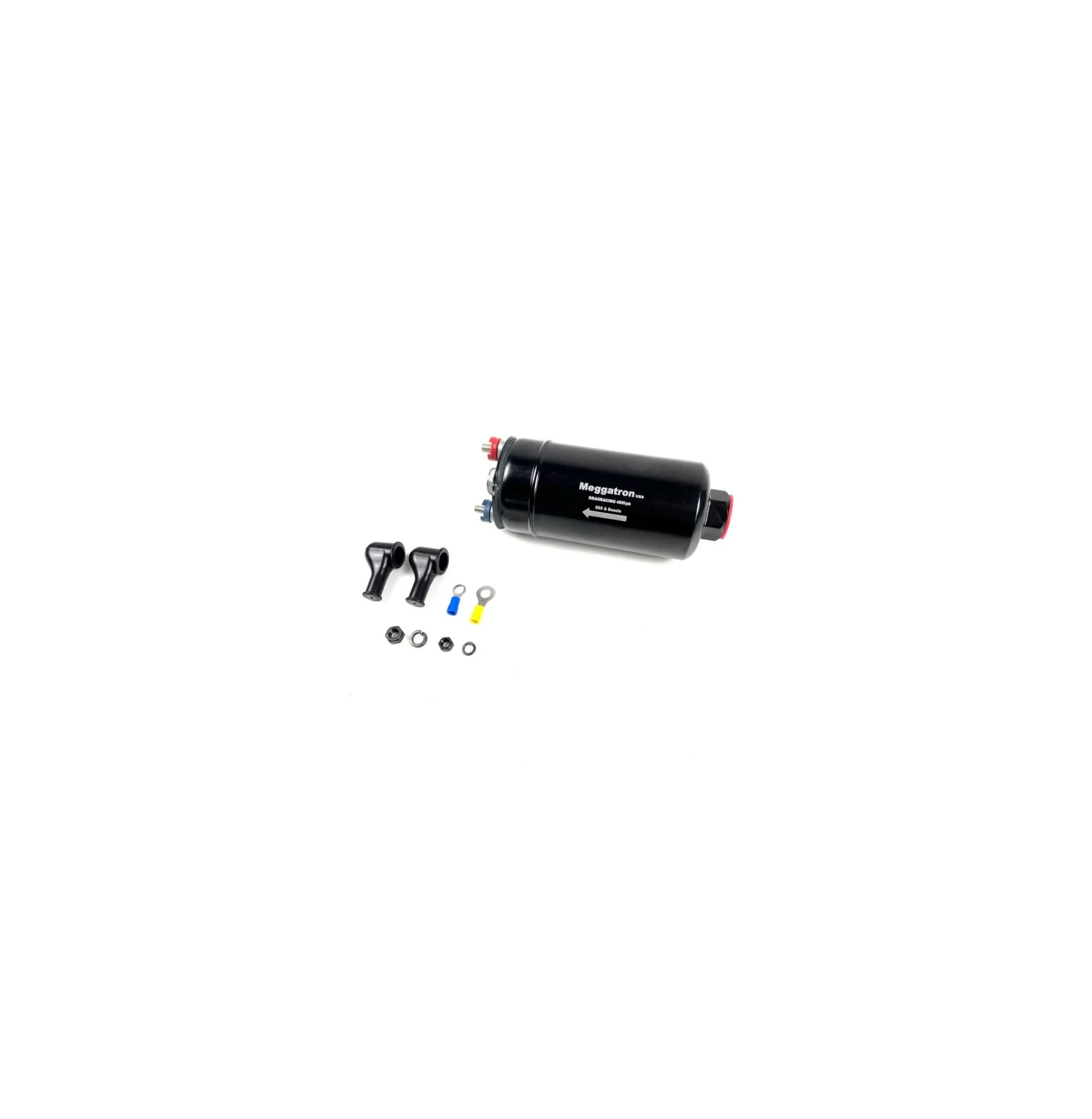

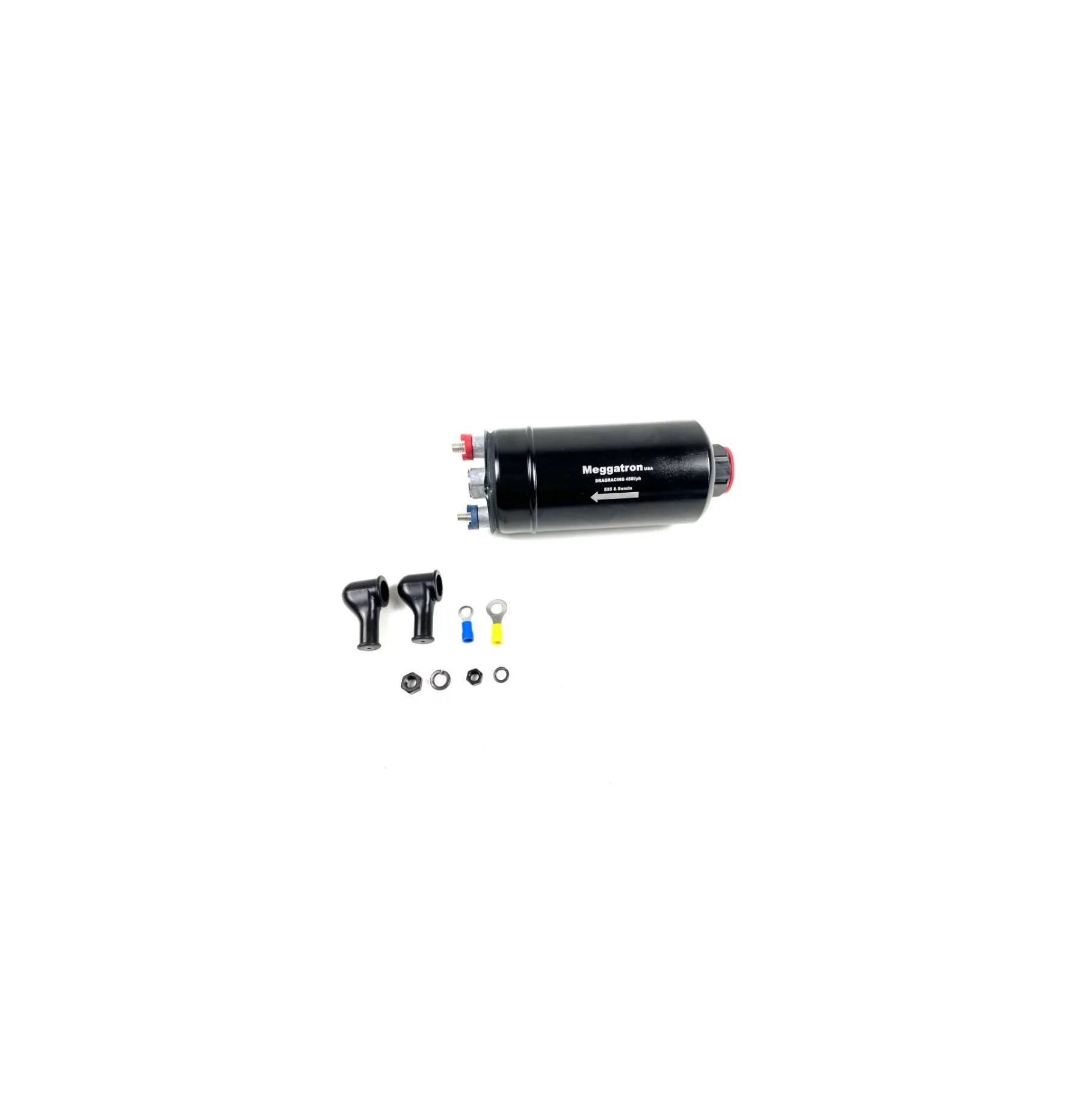

Scope of delivery
- 1x Meggatron fuel pump
- M18x1.5 input and M12x1.5 output with Dash 10 / Dash 6 adapters
