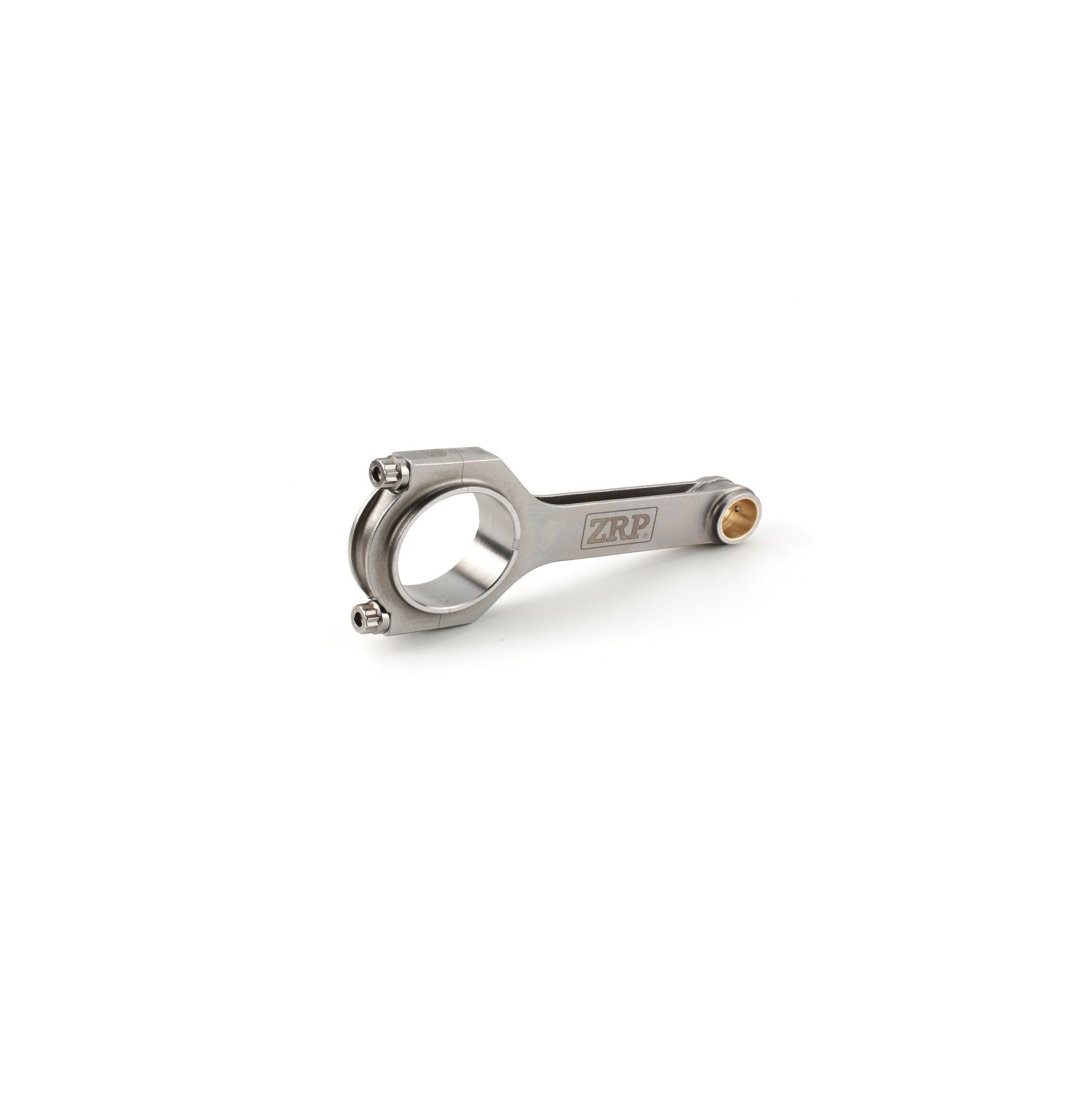

ZRP 2.0 TFSI EA113 H-shaft steel connecting rod set - High-strength performance for Audi & VW
The ZRP H-shaft steel connecting rod set for the 2.0 TFSI EA113 is designed for demanding tuning projects and racing.
Made from 4340 chrome molybdenum steel and equipped with reinforced ARP 2000 connecting rod bolts, these connecting rods can withstand loads of up to 800 hp and 900 NM. Ideal for applications with high rpm and power requirements.
Product features
- Manufactured from high-strength chrome molybdenum steel 4340 for maximum load capacity
- Piston pin diameter: 20mm and 21mm
- Nominal weight: 475g for reduced weight and higher torque
- ARP 2000 connecting rod bolts for high stability and reusability
Technical data
- Maximum load: up to 800PS and 9000 rpm
- Type: H-shaft, ideal for high-performance applications
- Piston pin with oil hole for better cooling and lubrication
Optional
Also available: ACL connecting rod bearing set for maximum performance (79,00€).
Compatible vehicles
- Volkswagen: Golf 5 GTI, Golf 6 R, Jetta, Passat B6
- Audi: A3 8P, S3, TT 8J
- Seat: Leon 1P Cupra, Altea
- Skoda: Octavia RS
Engine code letters
- AXX, BGB, BPG, BPJ, BPY, BUL, BWA, BWE, BWT, BYK, BHZ, BYD, BZC, CDLA, CDLB, CDLE, CDLF, CDLG, CDMA, CDZA
Scope of delivery

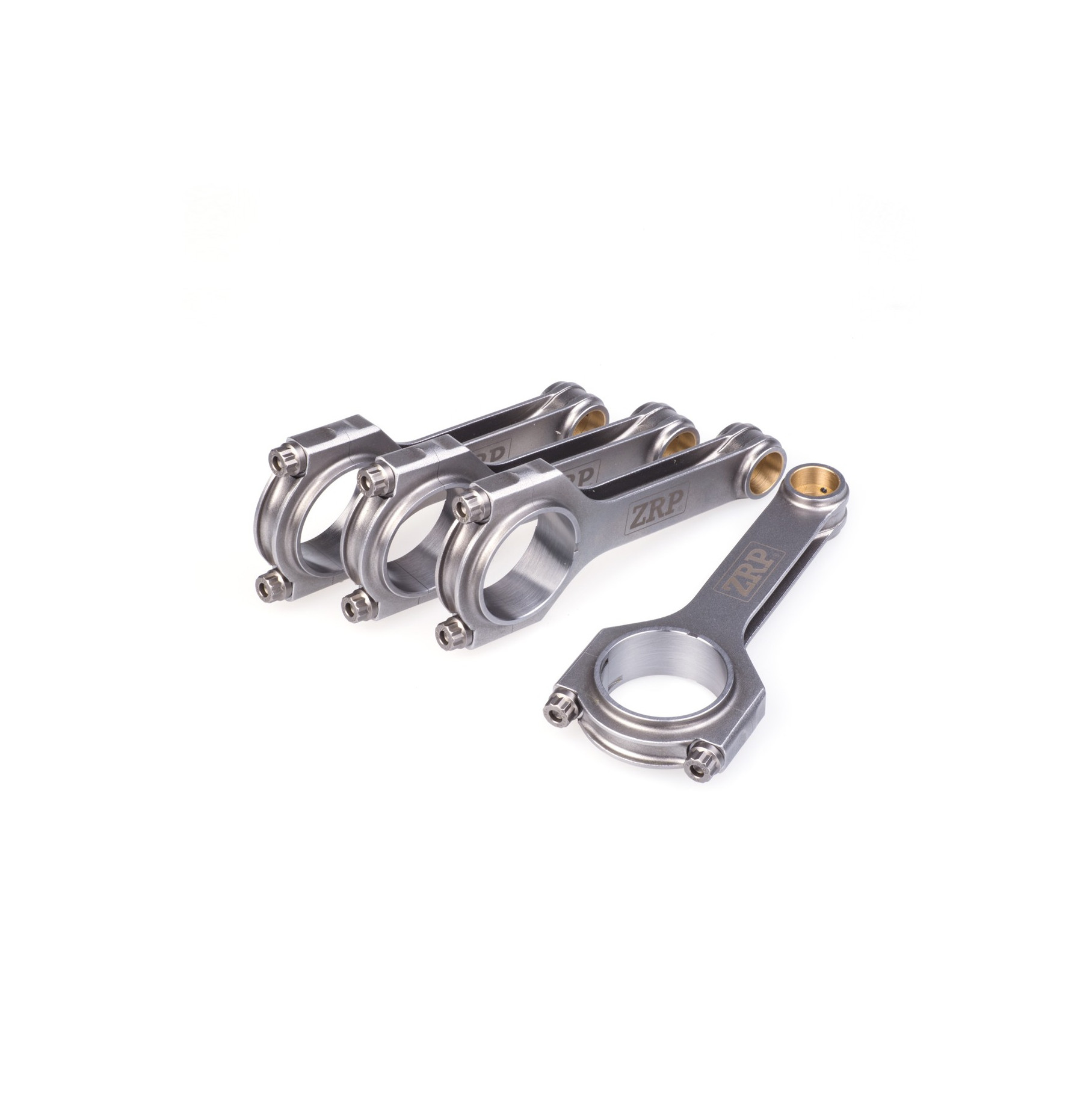

- 4x ZRP H-shaft steel connecting rods
- 8x ARP 2000 connecting rod bolts
Attention: This product is a racing article and therefore without guarantee and warranty.
