Wagner water cooler kit for BMW M3 F80 & M4 F82/F83 - TÜV-approved

Maximum cooling performance for BMW M3 F80 & M4 F82/F83 - Wagner Tuning Water cooler kit

The Wagner Tuning Competition water cooler kit has been specially developed for BMW M3 F80 & M4 F82/F83 with S55 engine. With an 89% increased radiator volume at the front and 94% at the sides, it ensures a significant reduction in cooling water temperature and improved intercooling.

Innovative racing technology for the best performance

The new competition racing meshes maximize heat transfer while ensuring optimum airflow for adjacent components such as the engine water cooler. The anti-corrosion coating protects against external influences and ensures a reliable long-term cooling effect.

Technical advantages:

• 89% larger radiator volume (frontal) - More effective heat dissipation for constant temperatures
• 94% larger radiator volume (lateral) - Optimum thermal performance even under high loads
• Optimized flow dynamics - Reduced back pressure for better efficiency
• Anti-corrosion coating - Maximum durability and constant performance
• Plug & Play installation - No time-consuming retrofitting required

Dimensions in comparison:

• OEM water cooler (frontal): 590 mm x 308 mm x 25 mm | volume: 4.5 L | surface area: 1817 cm²
• Wagner Tuning Water cooler (front): 568 mm x 468.4 mm x 32 mm | volume: 8.5 L (+89%) | surface area: 2660.5 cm² (+46.4%)
• OEM water cooler (side): 250 mm x 165 mm x 40 mm | volume: 1.65 L | surface area: 412.5 cm²
• Wagner Tuning Water cooler (side): 252 mm x 188 mm x 68 mm | volume: 3.2 L (+94%) | surface area: 473.8 cm² (+14.9%)

Suitable for the following models:

• BMW M3 F80 (S55 engine, 317-331 kW / 431-450 hp, year of construction 2014-2018)
• BMW M4 F82 (S55 engine, 317-368 kW / 431-500 hp, year of construction 2014-2020)
• BMW M4 F83 (S55 engine, 317-331 kW / 431-450 hp, year of construction 2014-2020)

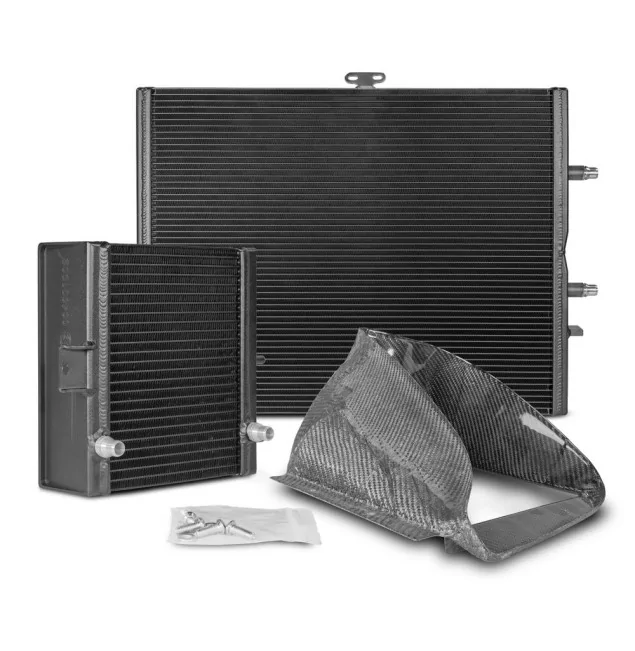

Scope of delivery:

• 1x front water cooler (low-temperature circuit)
• 1x side water cooler (low-temperature circuit)
• 1x carbon air duct for the side water cooler
• 1x mounting material
• 1x TÜV parts certificate + installation instructions

Note:

• Professional installation recommended
• TÜV parts certificate for road approval included
