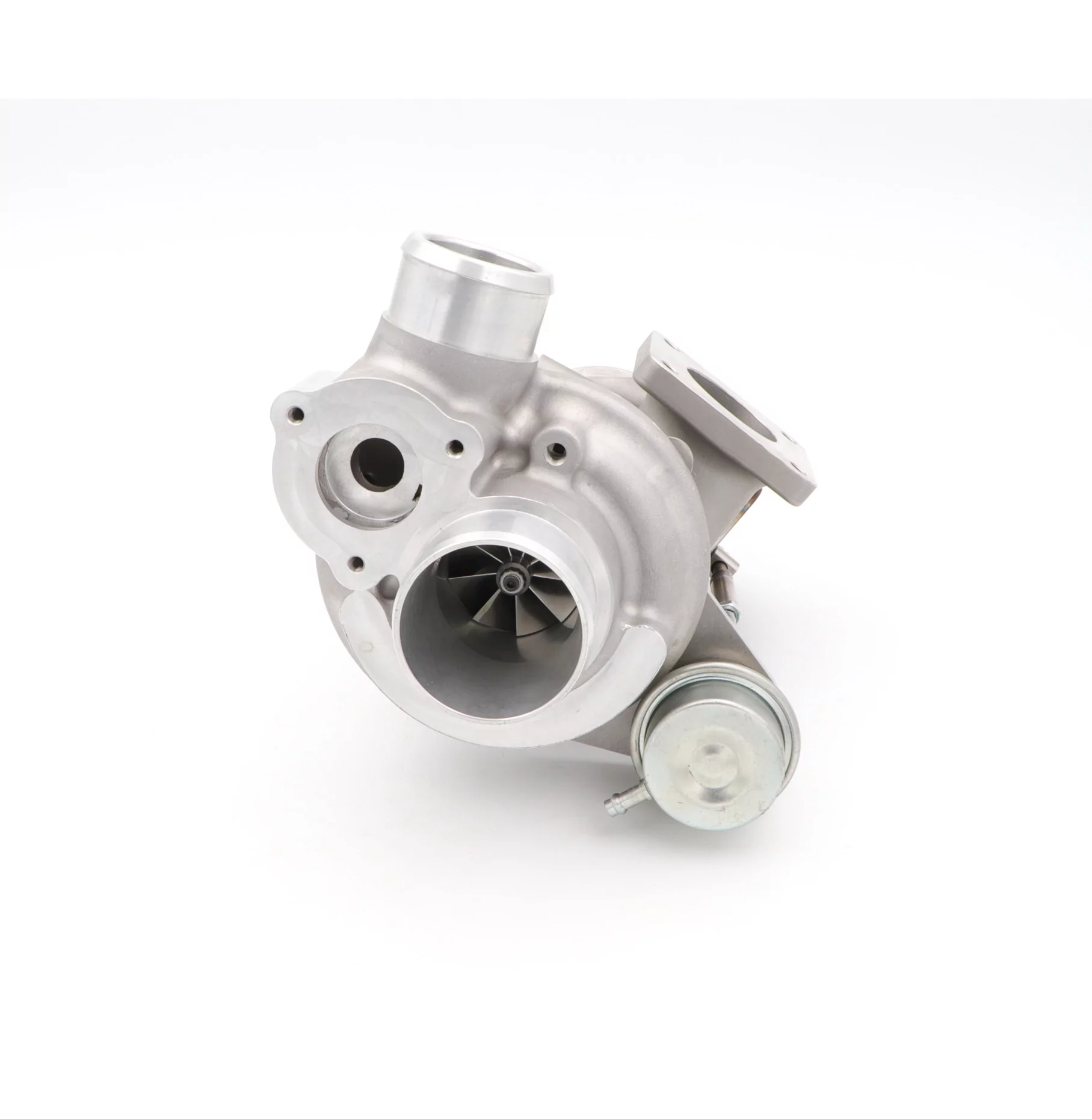

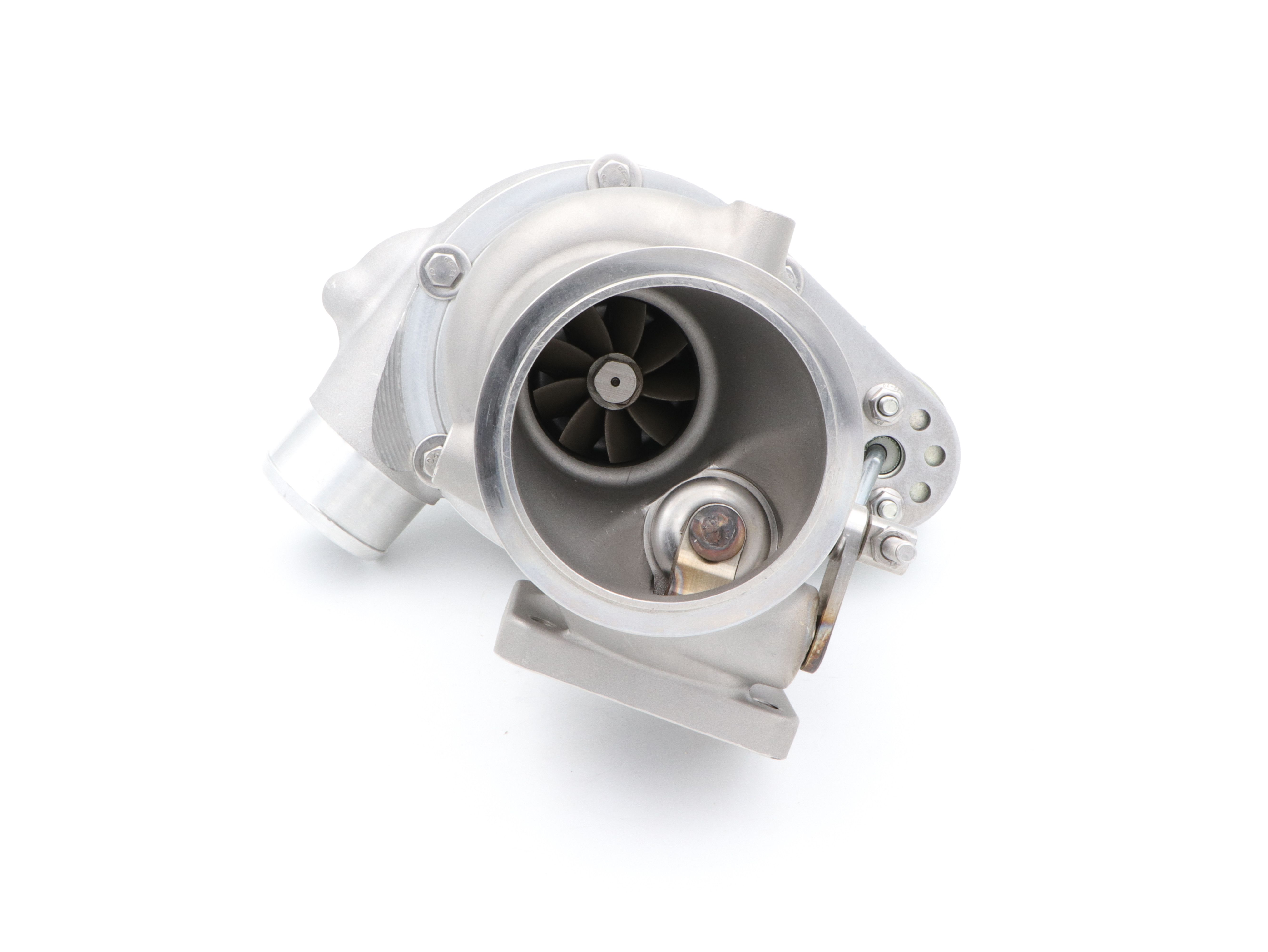

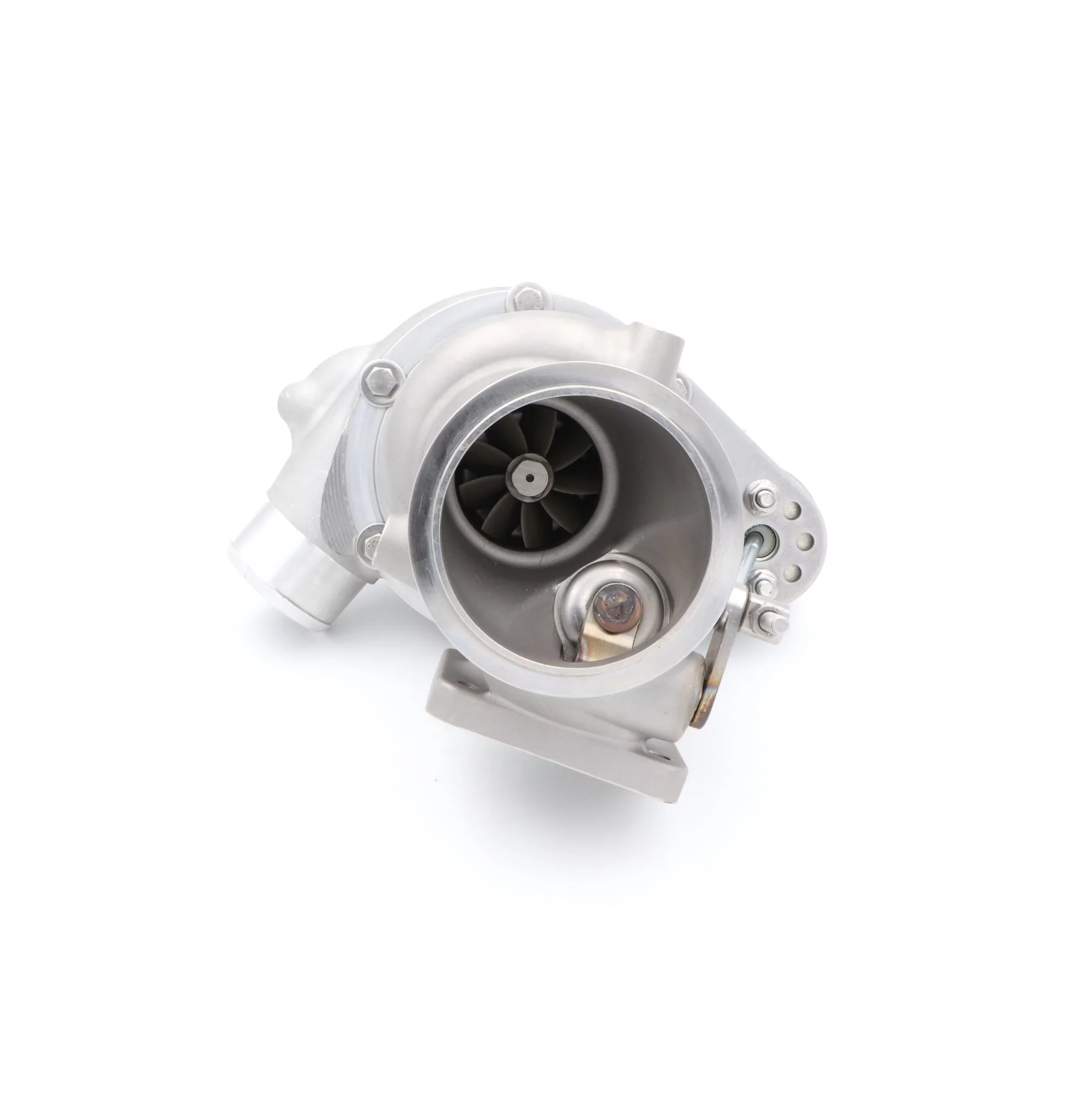

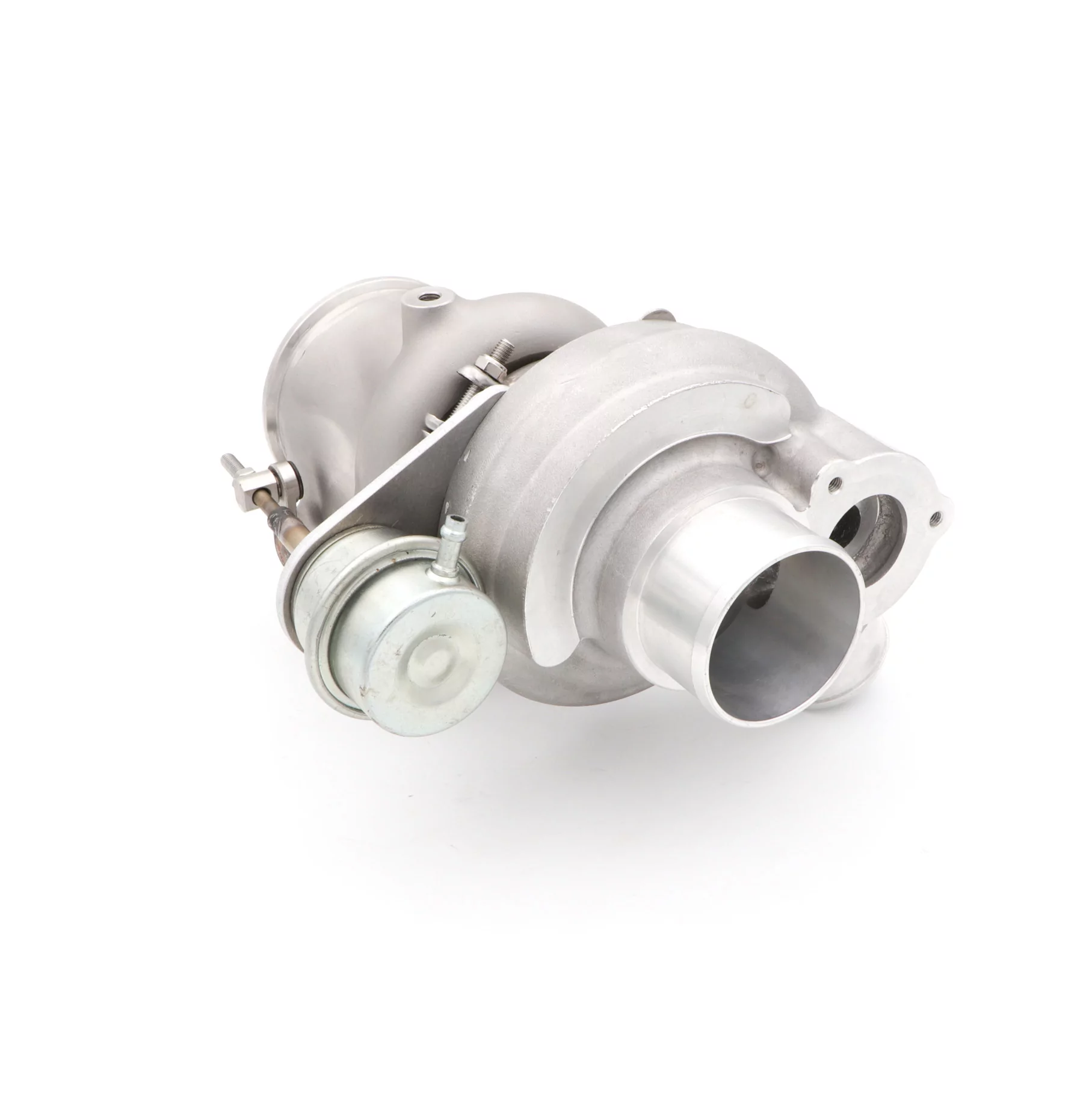

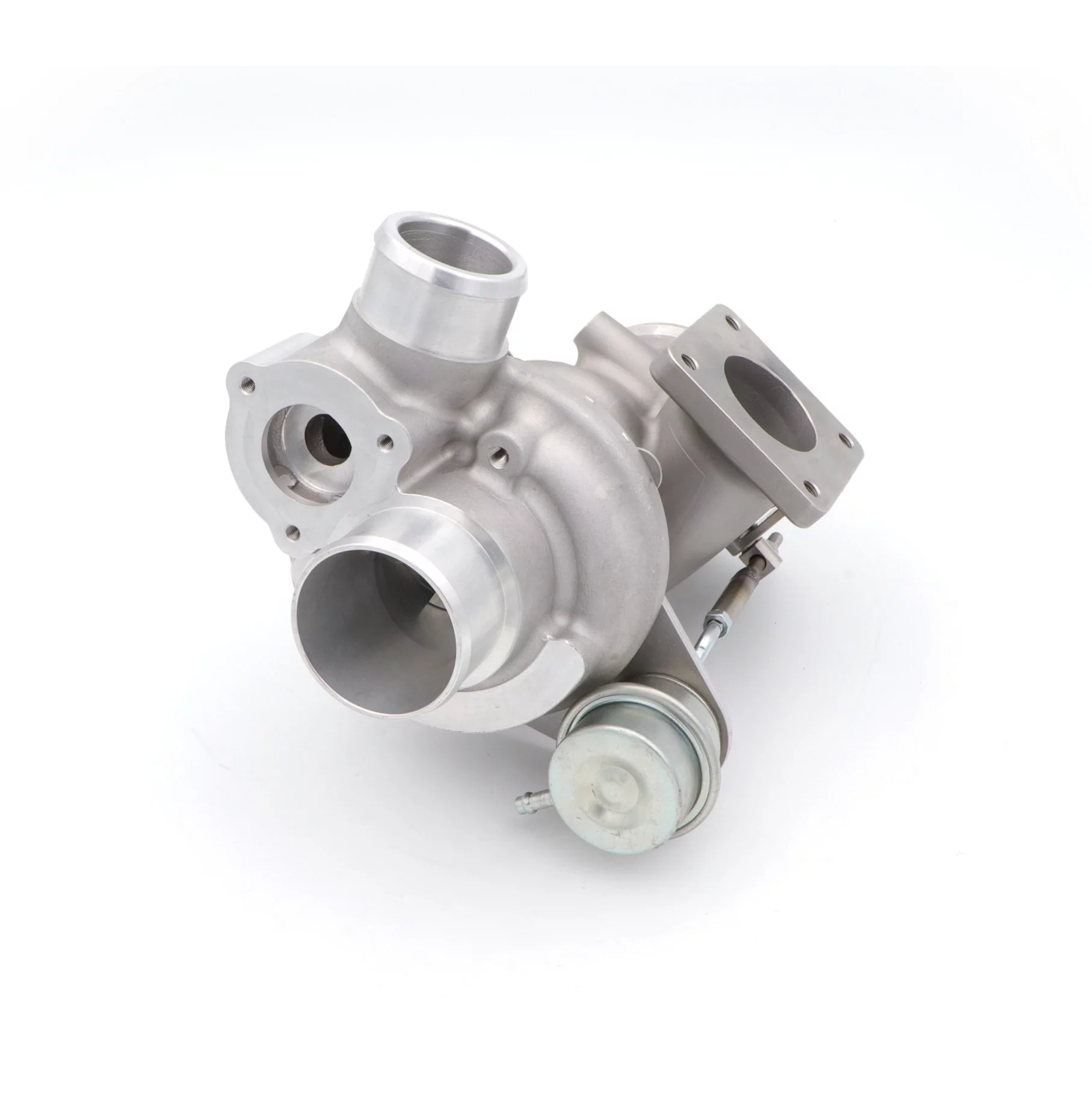

BP320-Abarth-Evo upgrade turbocharger for 1.4T Fiat & Abarth - GT1446 / IHI VL3X
Maximum performance with a close-to-production fit
The BP320-Abarth-Evo is a powerful upgrade turbocharger specially developed for 1.4T engines from the Fiat S.p.A. Group. By replacing components and adapting the engine software, performance increases of up to 320 hp are possible.
Technical highlights
- Specially developed compressor housing for improved flow characteristics
- In-house CNC-machined stainless steelturbine housing for maximum durability
- Enlarged 9-blade billet impeller for maximum efficiency
- Reinforced wastegate flap & lever for precise boost pressure control
- 60 mm intake manifold (outer diameter) for higher air mass intake
- Dual ceramic ball bearings for extremely high load capacity & durability
- VSR precision-balanced for maximum running smoothness and stability
Optimized performance with plug & play installation
The BP320-Abarth-Evo turbocharger is designed for simple plug & play installation. The original pressure hose can still be used, although the connection diameter has been increased.
The intake hose must be adapted to an outer diameter of 60 mm.
Suitable for the following vehicles
The BP320-Abarth-Evo is only compatible with 1.4T engines from the Fiat S.p.A. group that are fitted with a Garrett GT1446 (811311-5002S) or IHI VL3X as standard:
- Fiat Abarth 500 / 595 / 695 with GT1446 / IHI VL3X
- Fiat Punto Abarth with GT1446 / IHI VL3X
- Fiat 124 Spider (GT1446 / IHI VL3X variant only)
