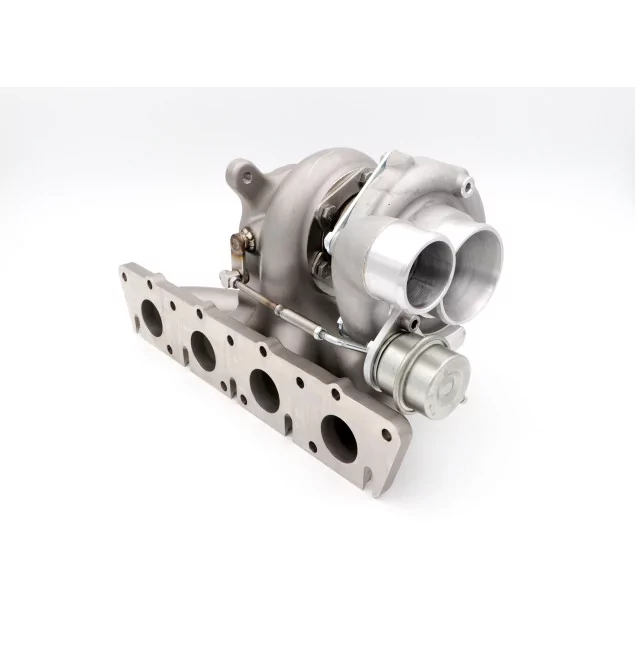

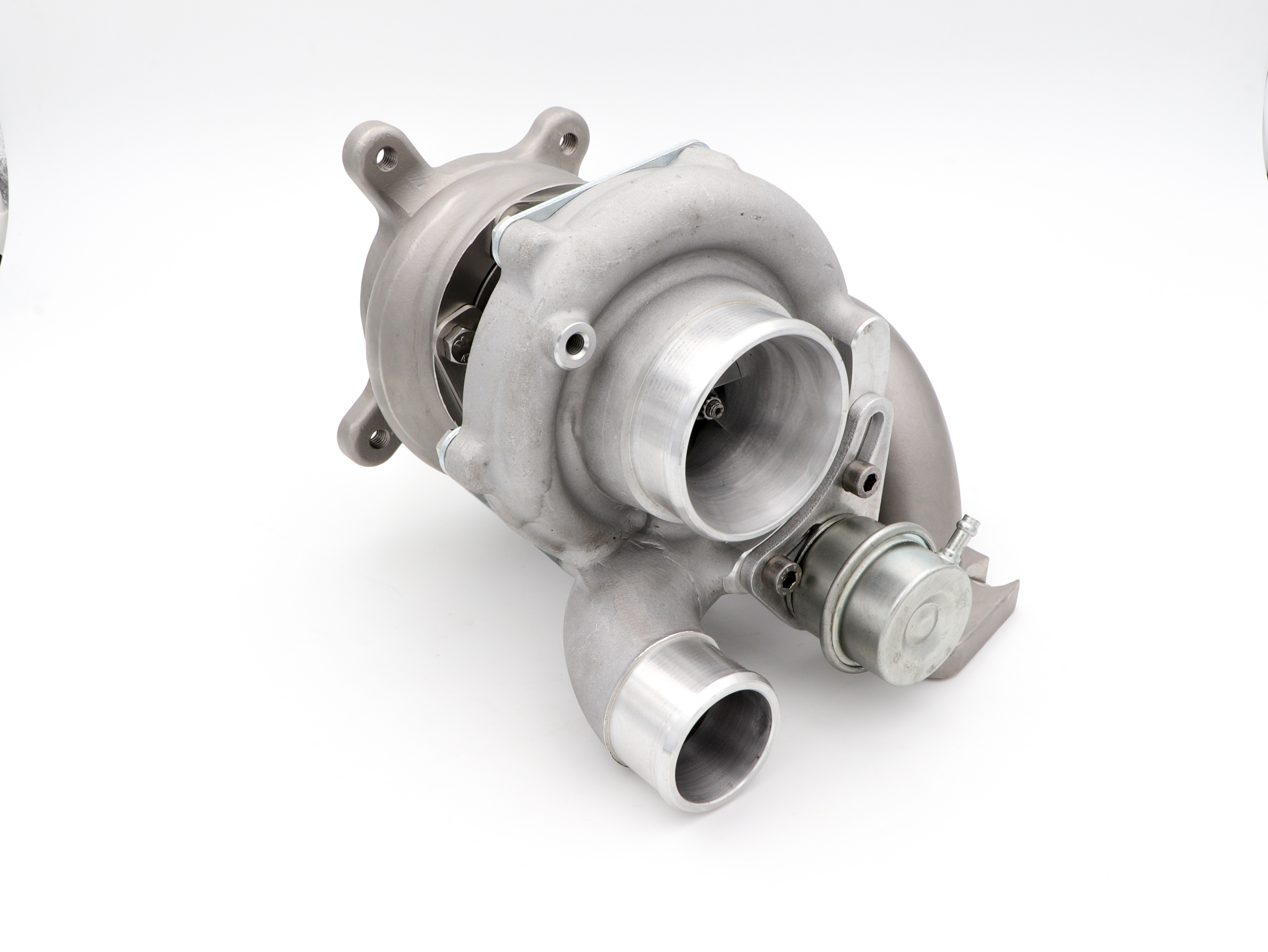

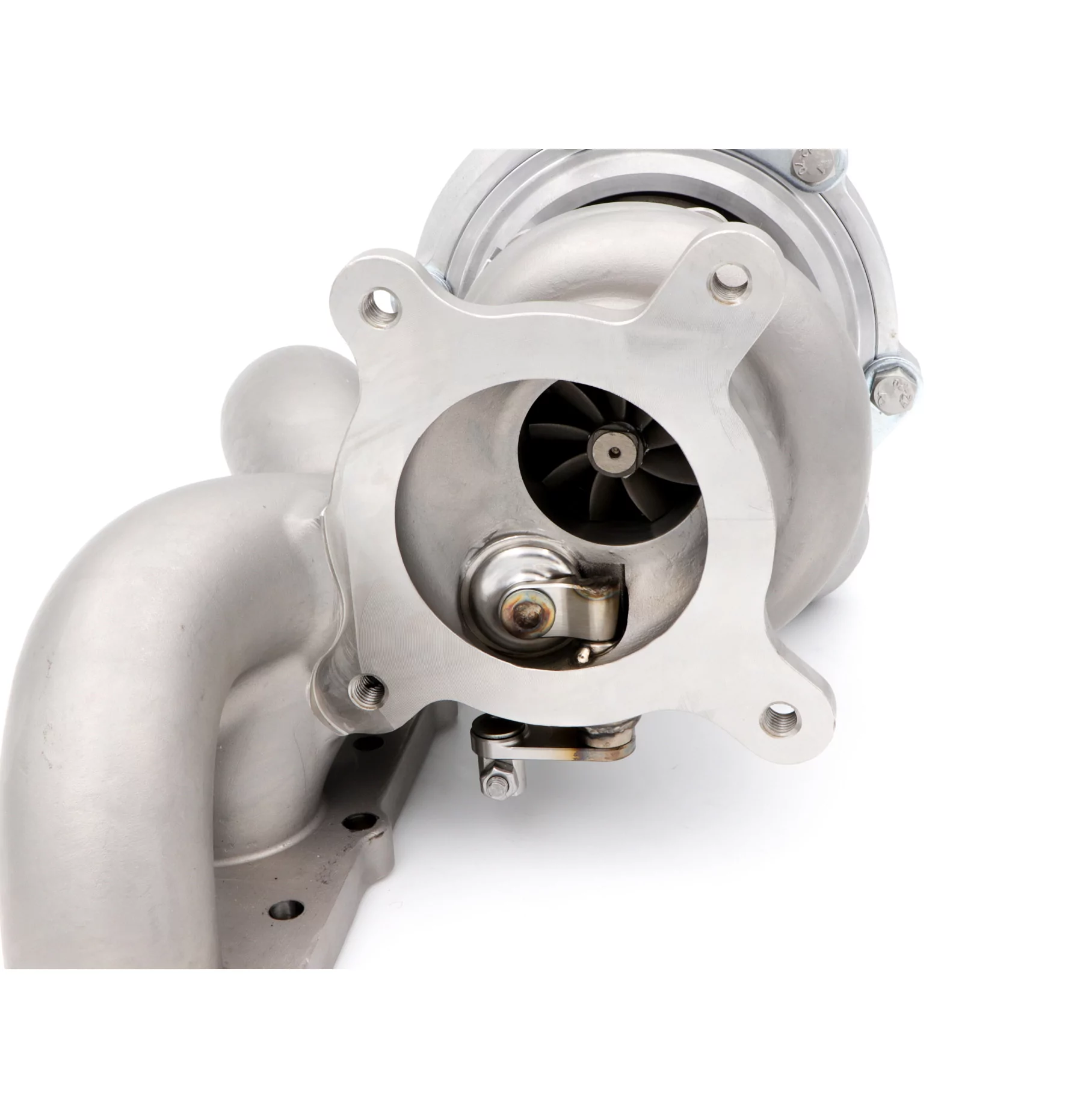

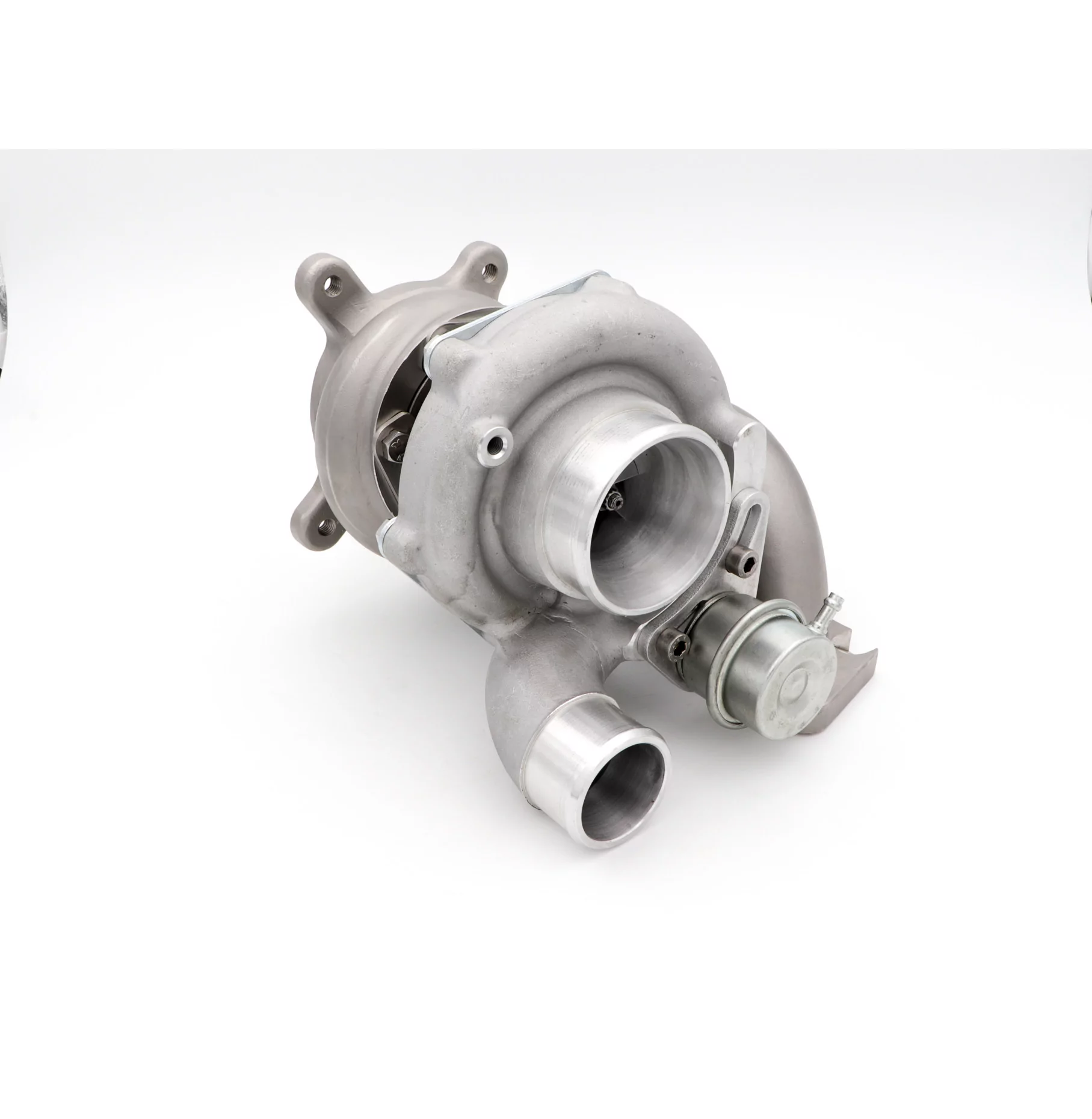

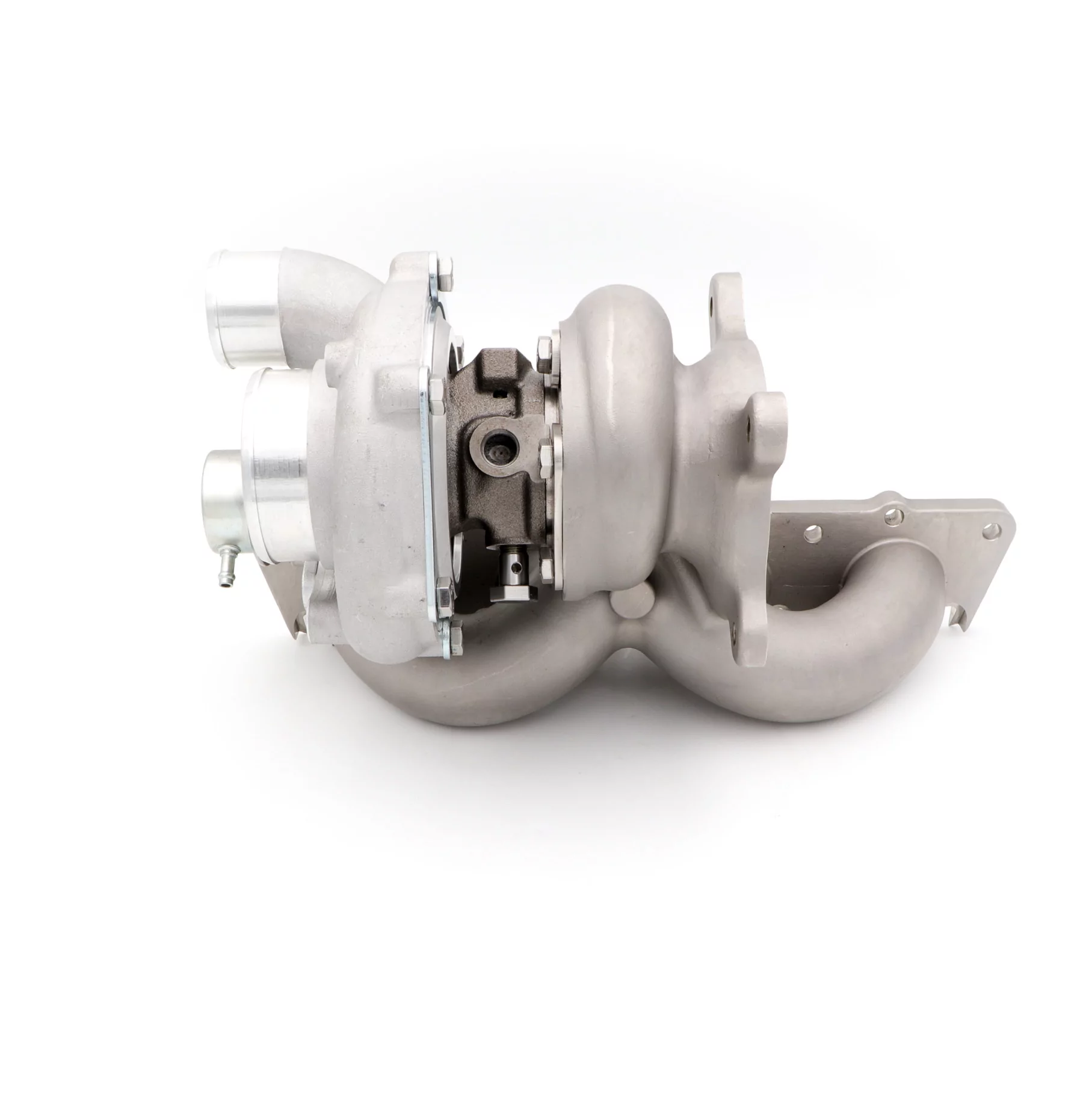

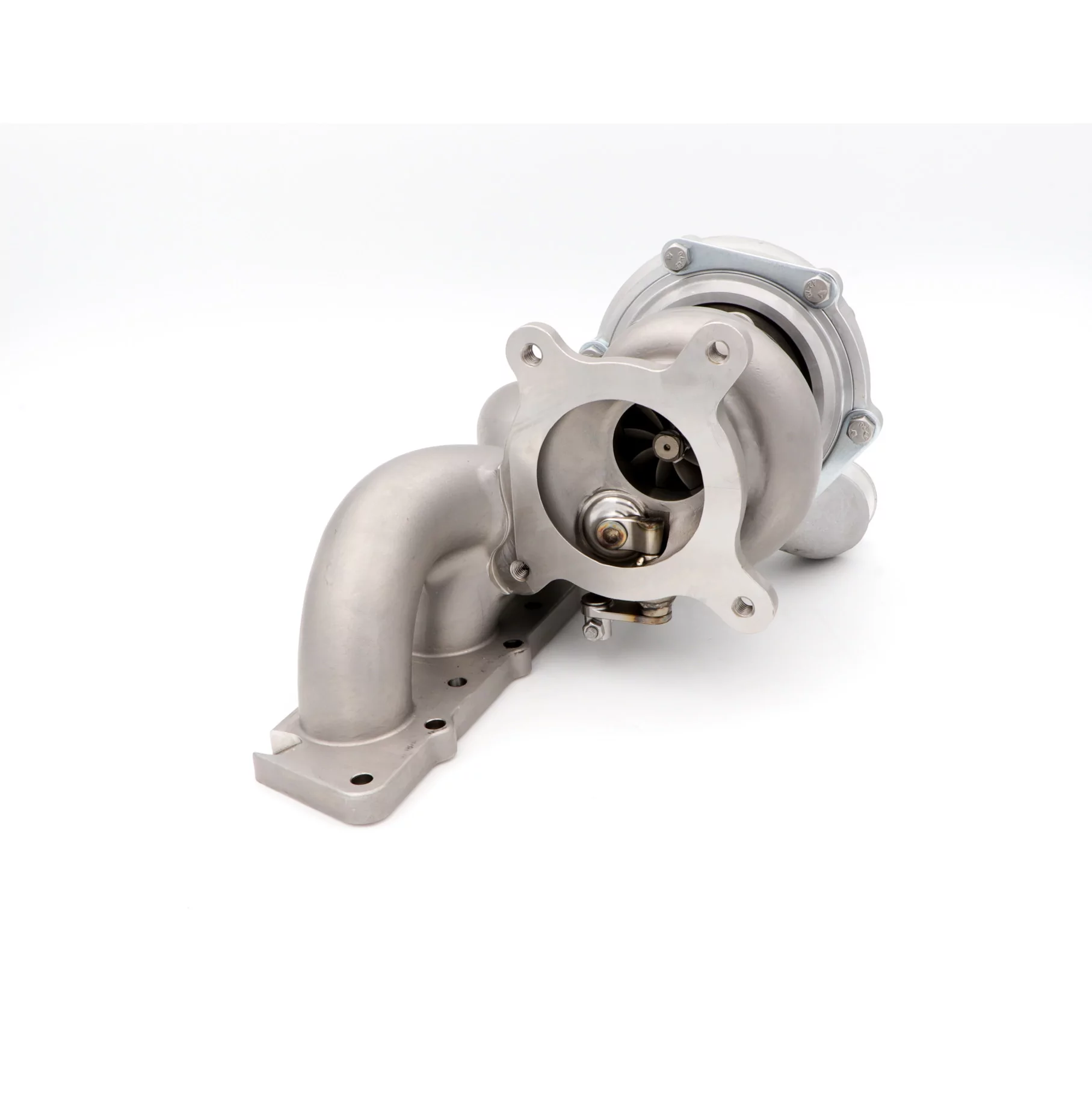

BP500 1.8T / 2.0 TFSI Integral Upgrade Turbocharger with double flange for VAG & KTM X-Bow

BP500 1.8T / 2.0 TFSI Integral Upgrade Turbocharger with double flange for VAG & KTM X-Bow

Maximum performance & perfect tuning

The BP500 1.8T / 2.0 TFSI Integral Upgrade turbocharger was specially developed for VAG 1.8T and 2.0L-TFSI-Motoren as well as the KTM X -Bow. By replacing additional components and adapting the engine software, performance increases of up to 500 hp are possible.

Technical highlights

• Specially developed compressor housing for optimized air flow
• Specially developed stainless steel investment cast integral manifold for improved airflow
• Billet 9-blade compressor wheel & G25 high-flow exhaust turbine for maximum efficiency
• Dual ceramic ball bearings for maximum load capacity & durability
• Optimized bearing and running clearances for maximum stability
• Reinforced pressure can & wastegate flap for precise boost control
• 76 mm intake manifold (outer diameter) for increased air mass intake
• 50 mm boost pressure connection with 90° silicone bend for optimized charge air routing
• VSR precision-balanced for maximum running smoothness and stability

Adaptations for installation

• Replacement of the water pipes
• Replacement of the intake hose with one with a 76 mm connection diameter
• A 50 mm 90° silicone elbow is required for the connection between the compressor housing and the charge pressure pipe
• On request with thread for an exhaust gas temperature probe

Suitable for the following vehicles

The BP500 1.8T / 2.0 TFSI Integral Upgrade turbocharger is compatible with all 1.8T & 2.0L TFSI engines from the VAG Group as well as the KTM X-Bow:

1.8T-Motoren (EA113):

• Audi: A3 8L, TT 8N
• Volkswagen: Golf IV, Bora, New Beetle, Passat B5
• Seat: Leon 1M, Toledo II
• Škoda: Octavia I, Superb I

2.0L TFSI EA113 & EA888 Gen1+2 engines:

• Audi: A3 8P, A4 B7, A6 C6, TT 8J
• Volkswagen: Golf V GTI, Golf VI GTI Edition 35, Jetta V, Passat B6, Eos, Scirocco III, Tiguan I
• Seat: Leon 1P, Altea, Toledo III
• Škoda: Octavia II RS, Superb II

KTM X-Bow

• KTM X-Bow with 2.0L TFSI EA113

Scope of delivery

• 1x BP500 1.8T / 2.0 TFSI Integral Upgrade turbocharger
• 1x mounting material

Important notes

Note: This product is not approved for use in road traffic and is intended exclusively for motorsport and racing applications.

Compatibility check: Please check the engine code of your vehicle to ensure that the turbocharger fits.
