copy of ACL 2.0 TSI EA888 STD Connecting rod bearing 4B5562H Golf 6 GTI TTS

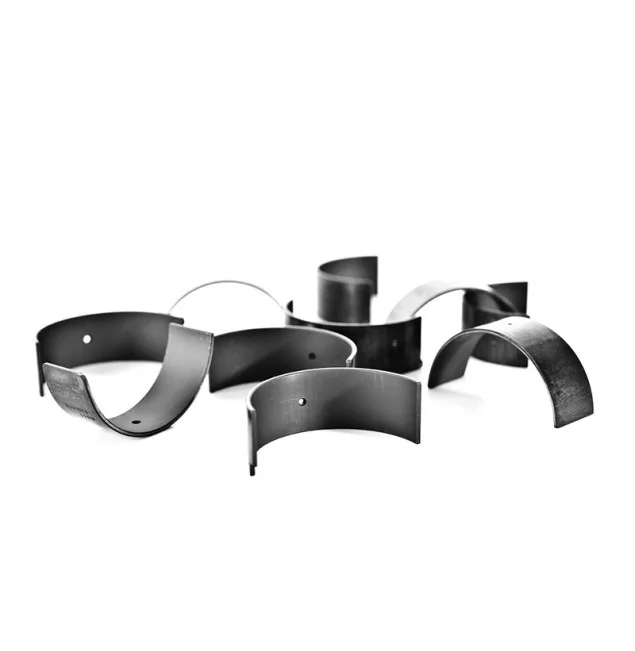

2.0 TSI EA888 ACL STD Race connecting rod bearing shells

Made in Australia

The ACL Race series has been developed for high speed, heavy duty and maximum performance

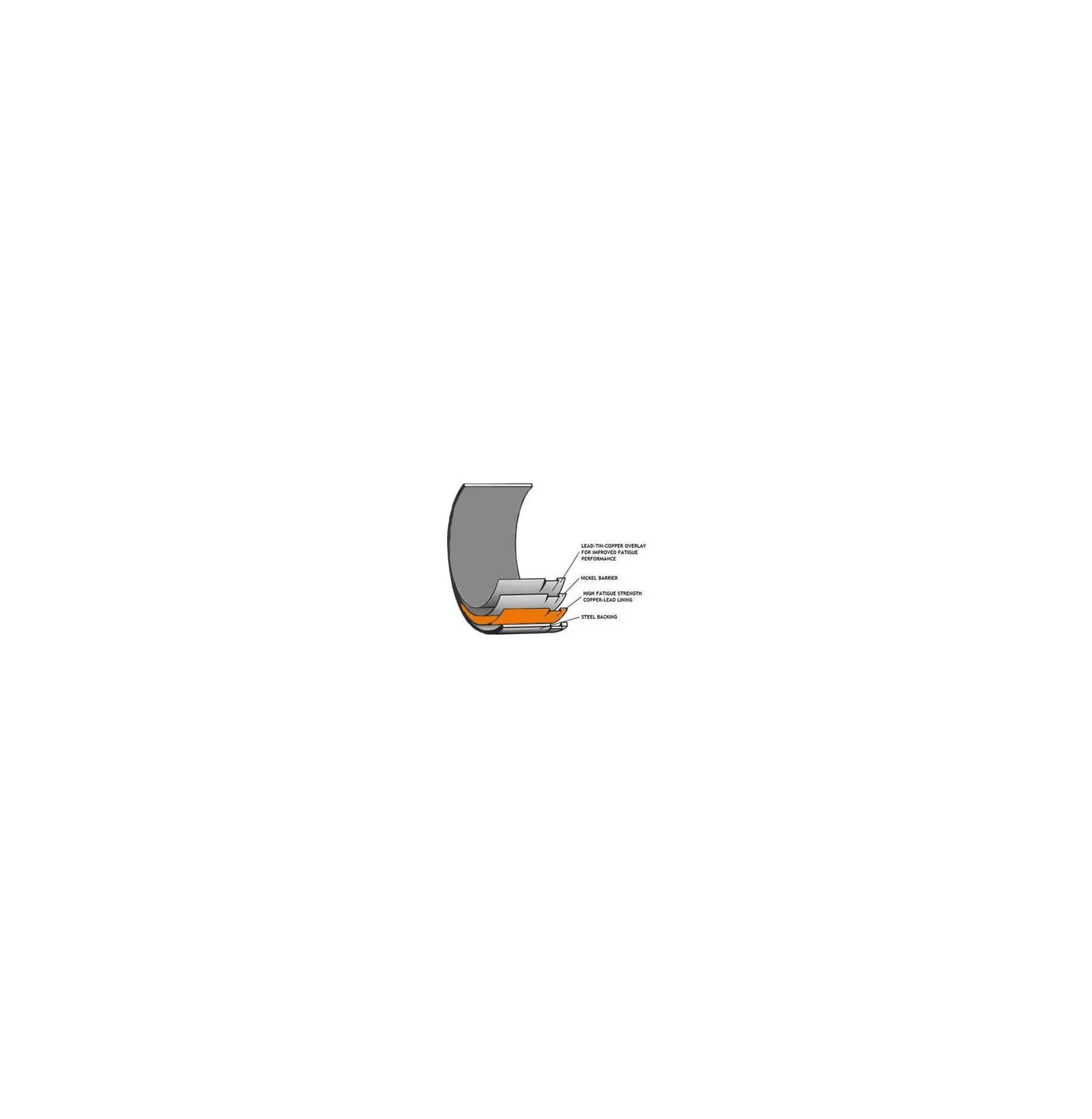

Hardened steel backing for improved support of the bearing shell

Elimination of flash plating on the back of the bearings to improve heat transfer through the bearings and maximize adhesion between the bearings and the housing

Enlarged ID chamfers on the bearing edges

In the version:
Standard dimension (STD) H
Optionally with locating cams for steel connecting rods or without locating cams for series connecting rods

Upper and lower sides are identical

Suitable for:
VW Golf 6, Passat, Bora, Polo
Audi A3 S3, TT, A5, A4, A6, Q3, Q5
Seat Leon, Ibiza Cupra
Skoda Oktavia

Engine code letter:
CCTA / CAWB / CBFA / CCTA / CCZA / CCZB / CCZC / CDNB / CDNC / CESA / CETA / CFKA / CPMA / CPSA
